Ventura 224 2024

6.8 m (22’-2”)
1063 kg (2344 lb.)
149 kW (200 HP)
12 persons

Our advantages

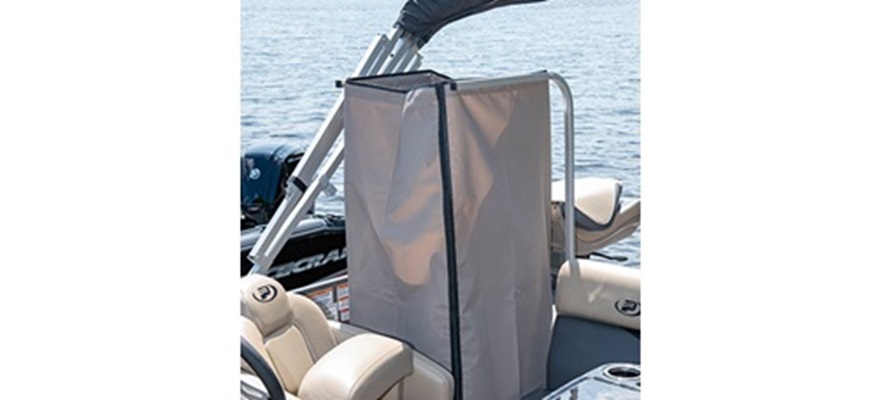

Optional removable privacy enclosure

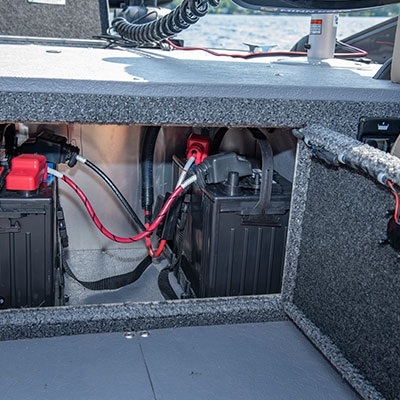

Battery storage (battery not included)
Driver console
Bow folding fishing seats

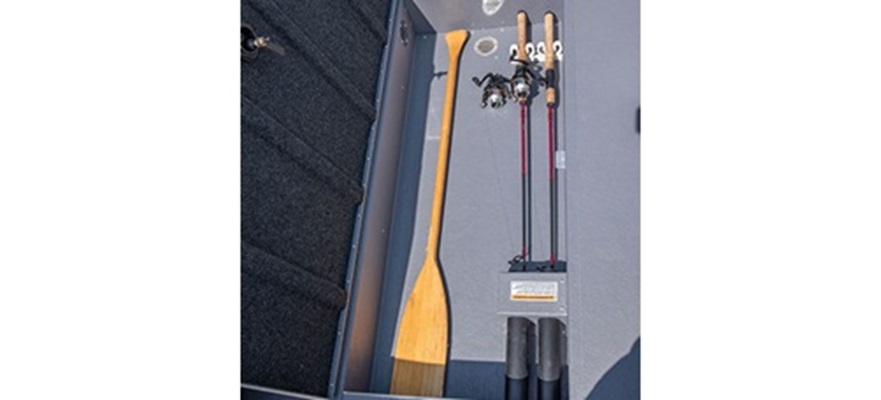

Lockable in-floor storage compartment
Built-in floor cooler
"L" seating area at the back, with table

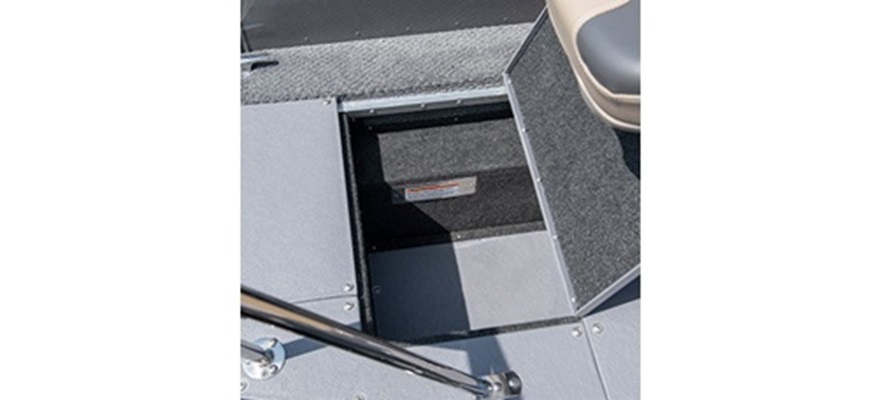

In-floor rear storage compartment

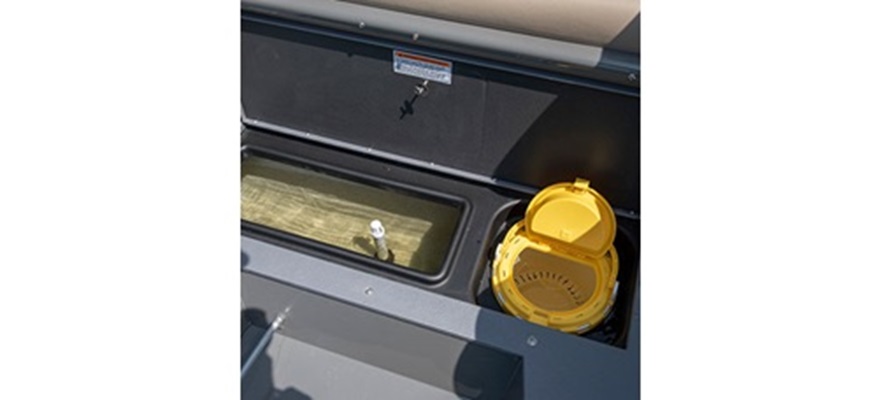

Stern electric-filled aerated livewell (77 L/20 U.S.gal.)

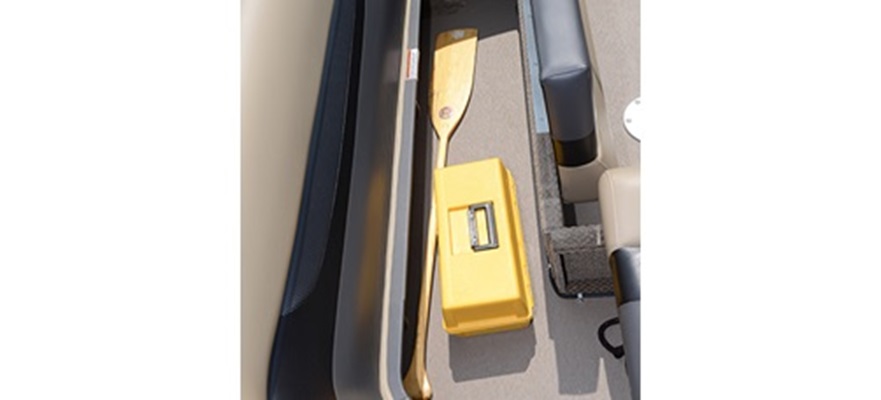

Storage under all lounges

View it in action ^*

Walkaround video ^*

Features and options

5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
Pressure treated wood deck
High gloss exterior High Solids urethane paint and decal package
High performance deep-Vee reverse chine hull design
Stainless steel bow eye
4 chromed cleats (6")
Side panel rigging tubes (from stern to console and console to bow)
Rear boarding access
Built-in floor cooler
In-floor lockable ski storage compartment
Anchor storage

Fiberglass helm console with glove box
Black thermoformed dash panel with lighted switches
No-FeedBack steering system with dual cables
Electric horn
200-watt AM/FM/Bluetooth Kicker Stereo with integrated USB plug and auxiliary input (1/8") in console
4 waterproof speakers
12V outlet
Smoked windscreen

SeaStar hydraulic steering system with tilt wheel
Tachometer, voltmeter, speedometer, trim and fuel gauges

Roto-Cast bucket seat captain's chair with slide and swivel
Roto-Cast bucket seat captain's chair with slide and swivel
4 folding seats
4 floor seat bases

Plush and heavy weight upholstery
1 chaise lounge
Storage under all lounges
Pedestal mount stern removable snack table with drink holders

12V or 24V bow trolling motor plug & receptacle with 2 battery tie-downs
2 - 44" long built-in electric-filled aerated livewell (77 L / 20 U.S. gal.)
7-foot lockable rod storage compartment

Black bimini top
Quick release bimini top latches and traveling struts
Factory-installed snap fasteners for canvas enclosures & mooring/trailer covers

Stern boarding ladder
Built-in floor fuel system
2 electric bilge pumps (500 gph)
3 battery trays
Navigation lights
Interior lighting
Stainless steel propeller (standard on 175 HP engines and up)
Cup holders
Holding handles

Center line : 6.8 m (22’-2”)
Beam : 2.5 m (97”)
Bottom width : 2.1 m (83")
Maximum depth : 0.8 m (32")
Approximate draft : 0.8 m (31")
Transom height : 0.64 m (25")
Approximate weight : 1021 kg (2250 lb)
Dead rise (degres) : 13

Max. HP cap. : 149 kW (200 HP)
Max. weight cap. : 1063 kg (2344 lb)
Maximum wieght person capacity : 726 kg (1600 lb)
Maximum person capacity : 12

Max. HP cap. : 149 kW (200 HP)
Max. weight cap. : 1072 kg (2363 lb)
Maximum weight person capacity : 726 kg (1600 lb)
Maximum person capacity : 12

Bottom : 2,8 mm (.110")
Side : 2,5 mm (.100")

Permanent : 174 L (46 U.S. gal.)

Entertainment package GREY including ski tow bar, side swim platform (driver side) and Bolster captain's chair
Entertainment package WHITE including ski tow bar, side swim platform (driver side) and Bolster captain's chair
Entertainment Package Special Edition including ski tow bar, side swim platform (driver side) and Bolster captain's chair

Select dark grey vinyl floor covering (Teak Supreme Solid Dark)…UE

MotorGuide^® Xi3-70FW wireless trolling motor (24 volts, 60", 70 lb. peak thrust)
Minn Kota^® 70 PD V2 trolling motor (24 volts, 60", 70 lb. peak thrust) with iPilot and bracket
MotorGuide^® Xi5 wireless trolling motor (24 volts, 60", 80 lb. peak thrust)
Minn Kota^® 70 PD V2 trolling motor (24 volts, 60", 70 lb. peak thrust) with bracket
Minn Kota^® Ulterra 80 trolling motor (24 volts, 60", 80 lb. peak thrust) with iPilot and bracket
Tilt steering mechanism…UE
Mercury^® power steering with tilt wheel (for 175, 200 & 225 HP V6 only)…UE
Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)

Bolster captain's chair for Ventura Grey color…UE
Bolster captain's chair for Ventura Special Edition (SE) color…UE
Bolster captain's chair for Ventura White color…UE
Port side swim platform (passenger side only)
Removable privacy enclosure

Active trim: automatic trim system
Totalscan sounder for Simrad including down imaging and side imaging…UE
Premium High Power stereo system…UE (including touchscreen Simrad Go7 with digital media center, 5 high performance speakers, VesselView link, downscan imaging, 10 inches subwoofer and amplifier)…UE
LED docking lights
Underwater lighting (2 lights)
Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
Sonar Lowrance Hook2 4x
Sonar Humminbird PiranhaMAX 4
Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)

Trailer cover (black)
Full camper enclosure excluding stern bimini canvas (black)
Full camper enclosure excluding stern bimini canvas with chrome finish bimini structure (black) (Ventura SE only)
Double bimini top excluding stern bimini canvas (black)
Double bimini top excluding stern bimini canvas, including rear extension and chrome bimini structure (black) (for Ventura Special Edition (SE) only)
Mooring cover (black)

Stainless steel propeller model Vengeance 14 x 19 (for 150 HP PRO-XS)…UE
Battery switch: onboard power shut down (Forced with 200 & up)

Deluxe transom tie downs…/pair
Transom saver motor support bar
ST175/80R13 C painted spare wheel with 5 lugs and bracket
ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
13" aluminum mag wheels…UE on painted model...(tandem, 4)
13" aluminum mag wheels…UE on galvanized model...(tandem, 4)
13" aluminum mag spare wheel and bracket (excluding nuts)
