Hudson® 170 WS

Hudson® 170 WS 2024

  • 5.4 m (17’-10”)
  • 685 kg (1510 lb.)
  • 112 kW (150 HP)
  • 5 persons
Hudson® 170 WS 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

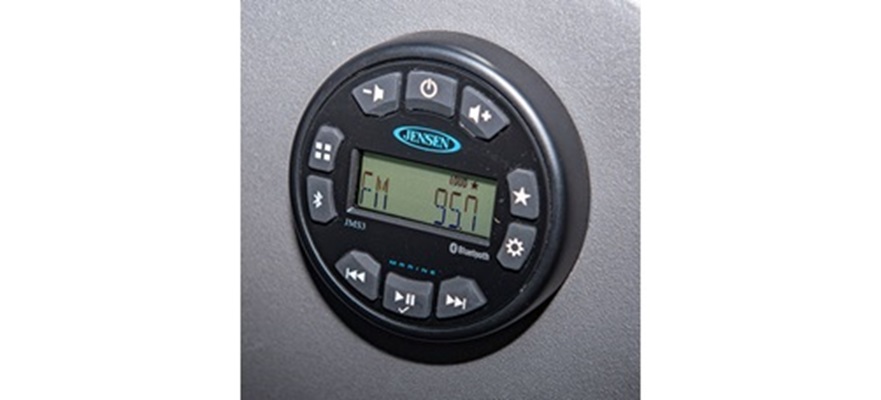

  • Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console
    Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console

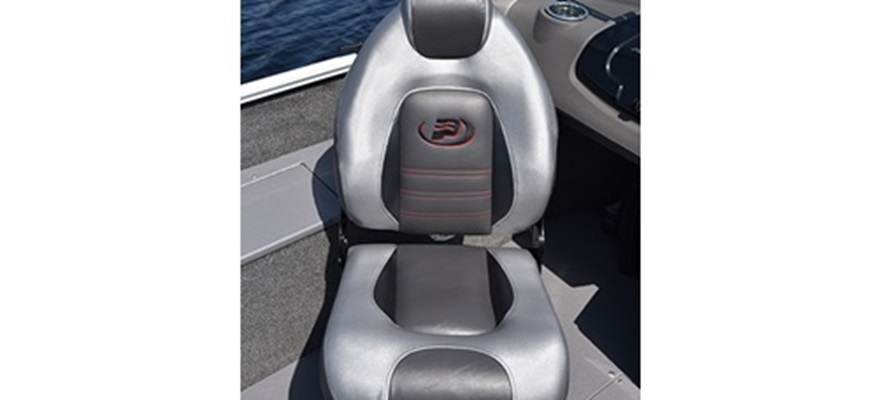

  • 2 folding seats
    2 folding seats

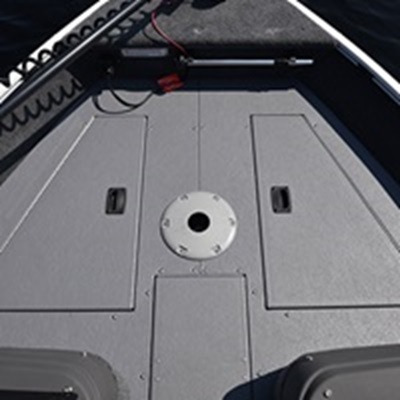

  • Bow raised casting platform with large storage compartment
    Bow raised casting platform with large storage compartment

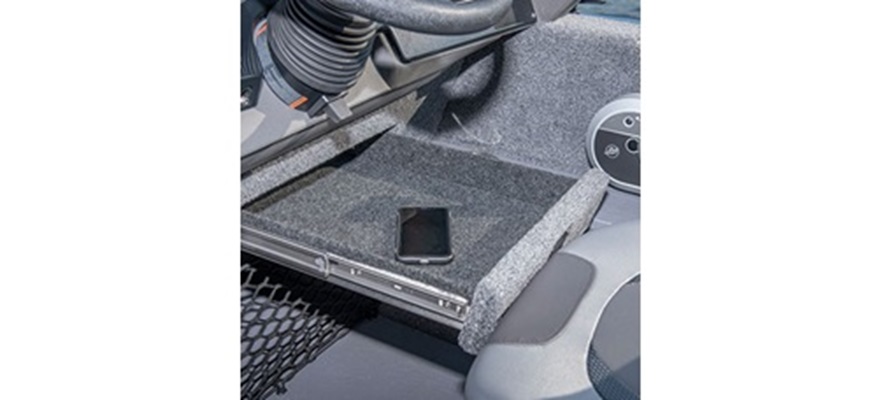

  • Drawer under driver console
    Drawer under driver console

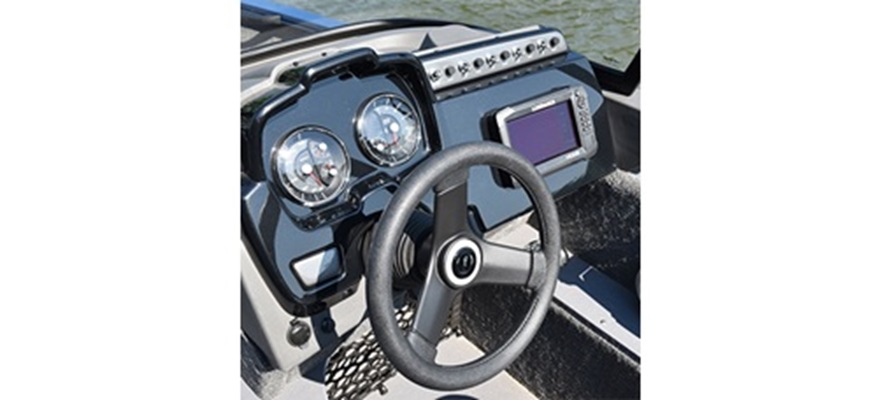

  • Driver console (Optional Sonar)
    Driver console (Optional Sonar)

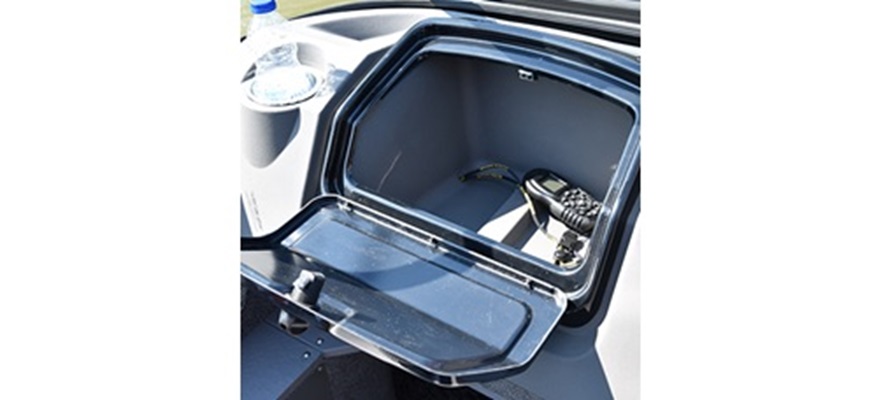

  • Glove box in console
    Glove box in console

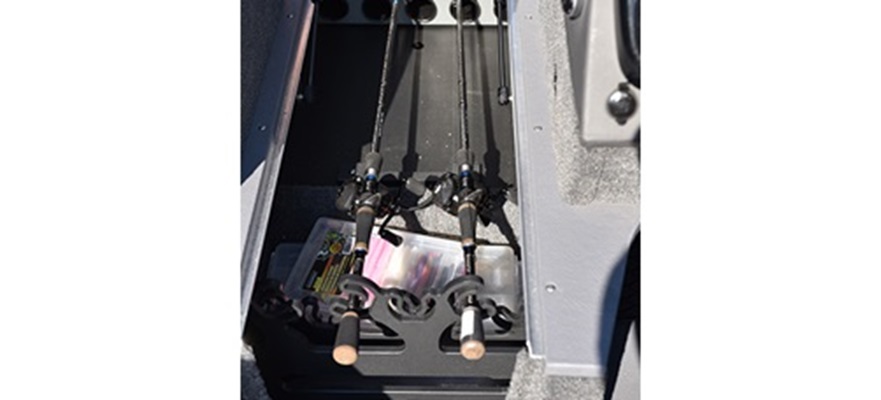

  • Large lockable rod organizer with tubes for 10 rods in the bow casting platform
    Large lockable rod organizer with tubes for 10 rods in the bow casting platform

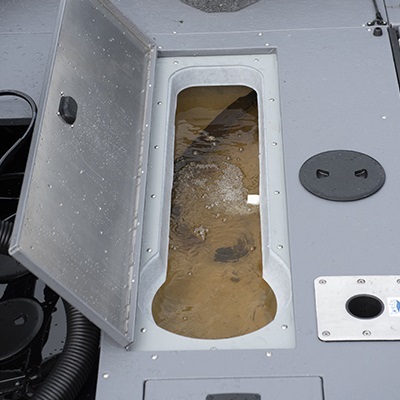

  • Stern electric-filled aerated livewell (77 L/20 U.S. gal.)
    Stern electric-filled aerated livewell (77 L/20 U.S. gal.)

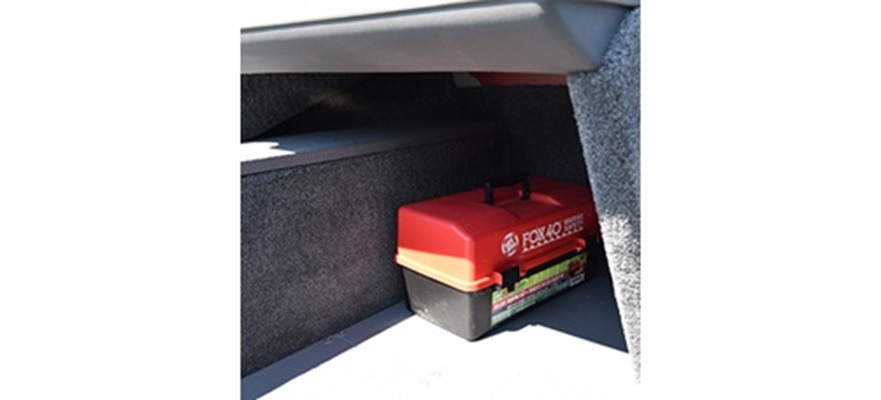

  • Storage under passenger console
    Storage under passenger console
  • Trolling motor plug
    Trolling motor plug

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices with a glossy finish including decal package
  • Reverse chine hull design
  • Aluminum clad transom
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from console to bow)
  • Rigging tube under flooring (from stern to console)
  • Stainless steel bow and stern eyes
  • 4 nylon cleats
  • BOW RAISED CASTING PLATFORM
  • Storage under casting platform
  • Compression latches on all storage
  • Deep cycle battery storage compartment
  • Seat mount floor base
  • Grids allowing air flow in the compartments
  • Large storage compartment
  • Large lockable rod organizer with tubes for 10 rods
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Splashwell extension

  • 7-foot rod storage without support
  • 12V or 24V bow trolling motor plug and receptacle with wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • Marine grade carpet front deck
  • BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • STERN SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (44", 77 L/20 U.S. gal.)
  • Overflow
  • Anti-spill cover
  • Protection filter on the filling pump

  • 6 floor seat bases
  • 2 folding seats with no-pinch hinges

  • Twin consoles with steering system
  • Glove box
  • Drawer under driver console
  • Black anodized walk-thru tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack dual cable steering system
  • Storage under consoles
  • 12V outlet

  • Tachometer, speedometer, voltmeter, trim, and fuel gauges

  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • Electric bilge pump
  • 2 bow handles
  • Navigation lights
  • Factory-installed snap fasteners for optional canvas camper enclosures and mooring top
  • Interior light(s)
  • 5 handles
  • 3 cup holders
  • 3 battery holders
  • Emergency reboarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl

  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 095 kg (2 415 lb) carrying capacity
  • Radial tire size : ST205/75R14 C
  • Weight: 202 kg (445 lb)

  • Center line : 5.4 m (17’-10”)
  • Beam : 2.3 m (91”)
  • Chine width : 2.0 m (78")
  • Maximum depth : 0.9 m (35")
  • Approximate draft : 0.8 m (33")
  • Transom height : 0.6 m (25")
  • Approximate weight : 649 kg (1430 lb)
  • Dead rise (degres) : 13

  • Maximum HP Capacity : 112 kW (150 HP)
  • Maximum weight capacity : 685 kg (1510 lb)
  • Maximum weight person capacity : 375 kg (827 lb)
  • Maximum person capacity : 5

  • Max. HP cap. : 112 kW (150 HP)
  • Max. weight cap. : 685 kg (1510 lb)
  • Maximum weight person capacity : 339 kg (748 lb)
  • Maximum person capacity : 6

  • Bottom : 2.5 mm (.100")
  • Side : 1.8 mm (.072")
  • Gas tank * : ≤ 95 L (25 U.S. gal.)

  • Built-in : ≤ 95 L (25 U.S. gal.)

  • Team Princecraft® special decal package…UE
  • Deluxe Princecraft® decal package…UE

  • Fishing Package: Tournament Fishing Team graphics, fish ruler, deluxe seat exchange, flat seat base(s) on fishing platform(s), quick rod storage, nets addition under console(s) and on bow platform
  • Deluxe Package including telescopic stern boarding ladder, 160-watt AM/FM/Bluetooth Jensen Stereo with 2 speakers and battery switch

  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 60", 70 lb. peak thrust)
  • MotorGuide® Xi5 wireless trolling motor (24 volts, 60", 80 lb. peak thrust)
  • Minn Kota® 70 PD V2 trolling motor (24 volts, 60", 70 lb. peak thrust) with bracket
  • Minn Kota® Ulterra 80 trolling motor (24 volts, 60", 80 lb. peak thrust) with iPilot and bracket
  • Minn Kota® 70 Dual spectrum CHIRP trolling motor (24 volts, 60", 70 lb. peak thrust) and bracket
  • Kicker option with SeaStar® hydraulic steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod
  • Tilt steering with slider for captain's chair…UE
  • SeaStar® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)

  • Deluxe folding seats…UE (replacing standard seats)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (11") and seat mount with auto-lock handle
  • Bow rider seat cushions
  • Removable ski pylon
  • RSP Combo: Removable aft flip seats and 2 cup holders

  • Downrigger supports (black)
  • Downrigger supports (grey)
  • Downrigger supports (red)
  • Downrigger supports (blue)
  • PrinceTrak mounting bracket
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)

  • SmartCraft gauges (tachometer, speedometer and trim)…UE
  • Sonar Lowrance® Hook2 4x with RAM mount
  • Sonar Humminbird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 (built-in) (the bathymetric depth maps are not included)
  • Active trim: automatic trim system

  • Trailer cover (black)
  • Complete conversion from sun top to full top (black)
  • Sun top with bimini canvas connected to windshield including the bimini structure (black)

  • Livewell minnow bucket
  • Stainless steel propeller model TempestPlus 14 5/8 x 22 for 150 HP PRO-XS…UE

  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
