Sport 175 MAX

Sport 175 MAX 2024

  • 5.3 m (17’-5”)
  • 703 kg (1549 lb)
  • 86 kW (115 HP)
  • 6 persons
Sport 175 MAX 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

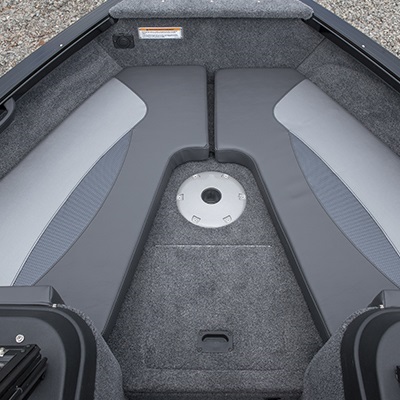

  • Bow rider seat cushions
    Bow rider seat cushions

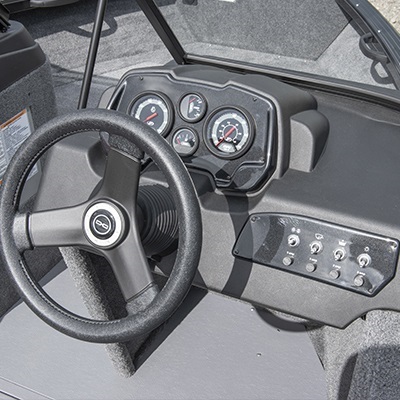

  • Driver console
    Driver console

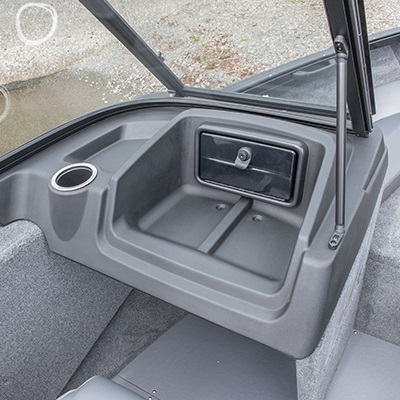

  • Passenger console with glove box and cup holder
    Passenger console with glove box and cup holder

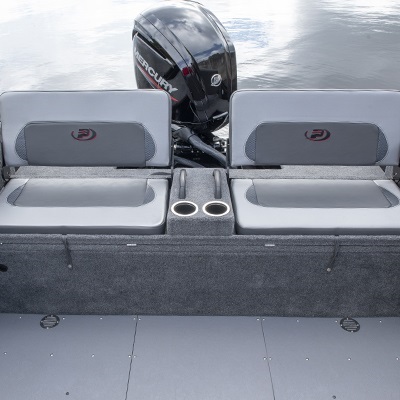

  • Rear flip-up full-width including 2 fold-down seats
    Rear flip-up full-width including 2 fold-down seats

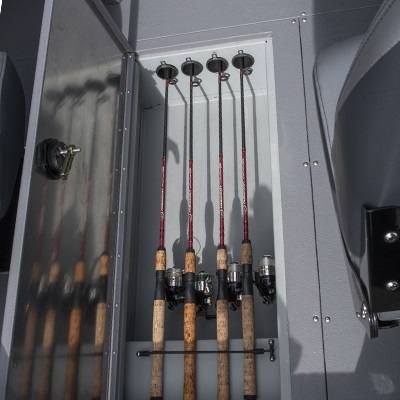

  • In-floor lockable rod organizer for 4 rods
    In-floor lockable rod organizer for 4 rods

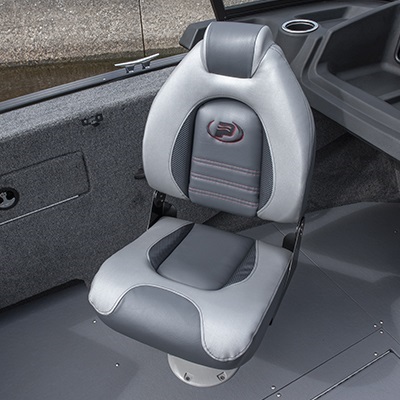

  • 2 folding seats with no-pinch hinges
    2 folding seats with no-pinch hinges

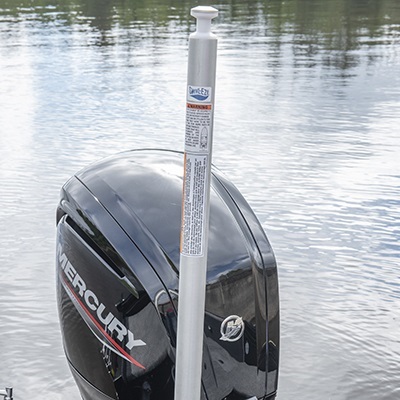

  • Removable ski pylon
    Removable ski pylon

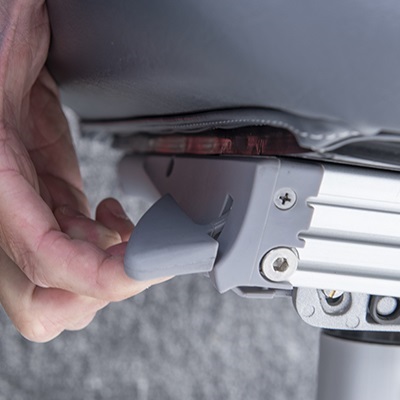

  • Driver seat on slider
    Driver seat on slider

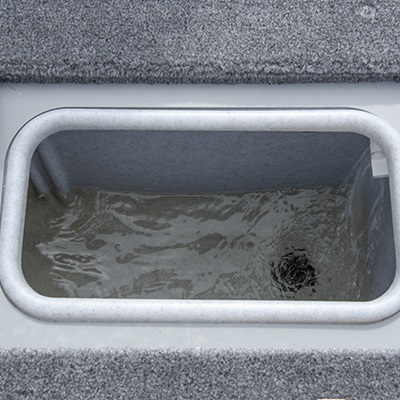

  • Stern electric-filled aerated livewell
    Stern electric-filled aerated livewell

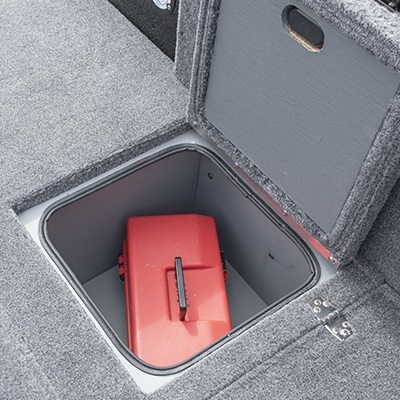

  • Stern casting platform storage compartment
    Stern casting platform storage compartment

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices with a glossy finish including decal package
  • Reverse chine hull design
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from console to bow)
  • Rigging tube under flooring (from stern to console)
  • Stainless steel bow and stern eyes
  • 4 chromed cleats
  • BOW RAISED CASTING PLATFORM
  • Deep cycle battery storage compartment
  • Seat mount floor base
  • Large storage compartments
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Rear flip-up full-width including 2 fold-down seats
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Splashwell extension
  • Storage compartment

  • 7-foot rod storage without support
  • In-floor lockable rod organizer for 4 rods
  • 12V bow trolling motor plug and receptacle with wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • Marine grade carpet front deck
  • BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • STERN SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (34", 64 L/17 U.S. gal.)
  • Overflow
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump

  • 3 floor seat bases
  • 2 folding seats with no-pinch hinges
  • Driver seat on slider
  • Bow rider seat cushions

  • Twin consoles with steering system
  • Glove box
  • Black anodized walk-thru tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack steering system
  • Tilt steering wheel
  • Storage under consoles
  • 160-watt AM/FM/Bluetooth Jensen Stereo
  • 2- 6 1/2'' waterproof speakers
  • 12V outlet

  • Tachometer, speedometer, trim, and fuel gauges

  • Anti-skid vinyl cockpit floor
  • Marine grade carpet platforms
  • Electric bilge pump
  • 2 bow handles
  • Navigation lights
  • Factory-installed snap fasteners for optional canvas camper enclosures and mooring top
  • Interior light(s)
  • 5 handles
  • 5 cup holders
  • 2 battery holders
  • Trailer cover (black)
  • Sun top with bimini canvas connected to windshield including the bimini structure (black)
  • Stern telescopic boarding ladder
  • Removable ski pylon
  • Transducer(s) mounting plate

  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 071 kg (2 356 lb) carrying capacity
  • Radial tire size : ST205/75R14 C
  • Weight: 228 kg (503 lb)

  • Center line : 5.3 m (17’-5”)
  • Beam : 2.3 m (91”)
  • Chine width : 1.9 m (75")
  • Maximum depth : 1.0 m (39")
  • Approximate draft : 0.8 m (30")
  • Transom height : 0.6 m (25")
  • Approximate weight : 602 kg (1327 lb)
  • Dead rise (degres) : 15

  • Maximum HP Capacity : 86 kW (115 HP)
  • Maximum weight capacity : 703 kg (1549 lb)
  • Maximum weight person capacity : 420 kg (926 lb)
  • Maximum person capacity : 6

  • Max. HP cap. : 86 kW (115 HP)
  • Max. weight cap. : 703 kg (1549 lb)
  • Maximum weight person capacity : 420 kg (926 lb)
  • Maximum person capacity : 7

  • Bottom : 2,5 mm (.100")
  • Side : 1,8 mm (.072")
  • Gas tank * : ≤ 91 L (24 U.S. gal.)

  • Built-in : ≤ 91 L (24 U.S. gal.)

  • Fish and trolling package Lowrance/Motorguide including Motorguide® Xi3-55 FW wireless 12 volts 54" 55 lbs, sonar Lowrance® Hook2 4x with RAM mount and onboard charger 12 V (ProSport 6)
  • Fish and trolling package Humminbird/Minnkota including Minn Kota® 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket, Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included) and onboard charger 12 V (ProSport 6)

  • Deluxe folding seats…UE (replacing standard seats)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (11") and seat mount with auto-lock handle
  • 2 cockpit rear seat bases

  • Downrigger supports (black)

  • Complete conversion from sun top to full top (black)

  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
