Brio<sup>e</sup> 17

Brioe 17 2024

  • 5.4 m (17’-7”)
  • 744 kg (1640 lb)
  • 48V (approx. 25 HP)
  • 5 persons
Brioe 17 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

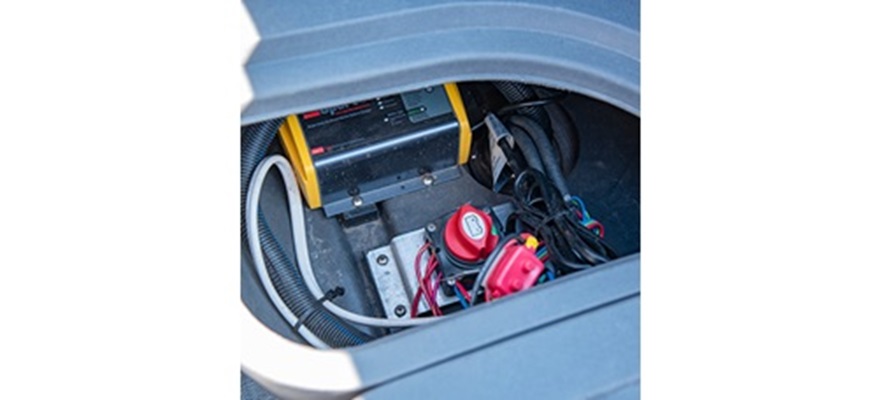

  • Battery switch allowing the onboard power shut down
    Battery switch allowing the onboard power shut down
  • Optional Concert package including controls for Jensen Stereo, horn, docking lights, and in-dash USB
    Optional Concert package including controls for Jensen Stereo, horn, docking lights, and in-dash USB

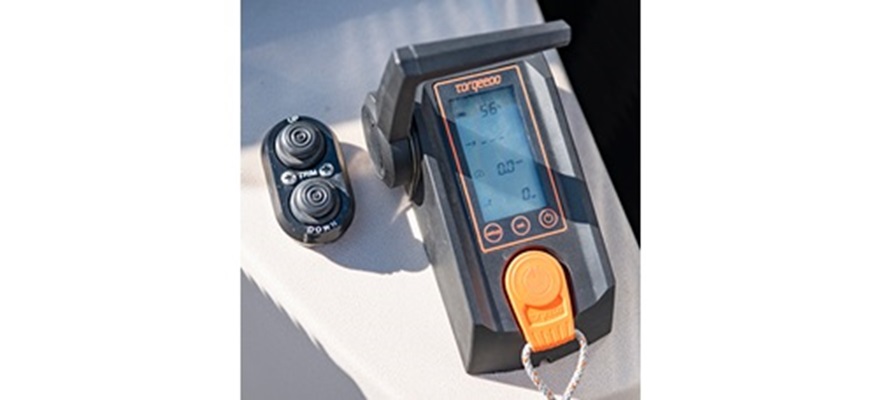

  • Optional controls for electric engine
    Optional controls for electric engine
  • Optional Torqeedo electric engine
    Optional Torqeedo electric engine
  • Rotomolded helm console with Concert package
    Rotomolded helm console with Concert package

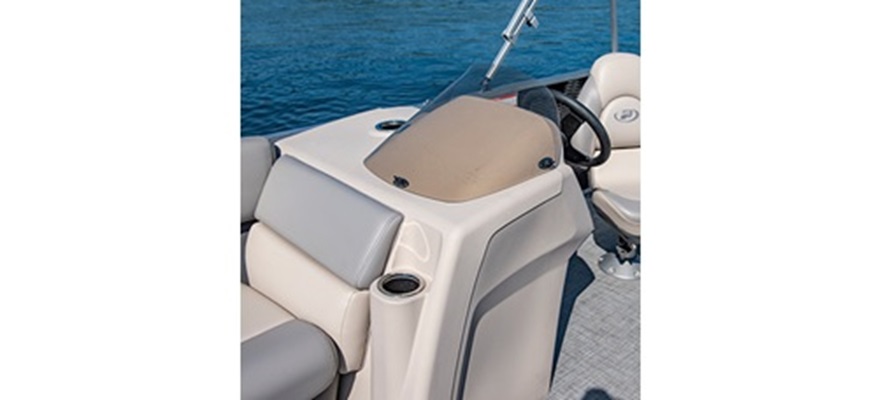

  • Driver console with optional Concert package
    Driver console with optional Concert package
  • Floor battery storage with optional 24V Battery
    Floor battery storage with optional 24V Battery
  • Front lounger
    Front lounger
  • Storage under all lounges
    Storage under all lounges
  • Helm storage with net
    Helm storage with net

Features and options

  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats

  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switches
  • Push on/off console courtesy light

  • Remote throttle with integrated display (indicating battery voltage, battery charge, speed, remaining range at current speed, and input power consumption)
  • Voltmeter for accessory battery

  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • Folding swivel driver seat
  • 1 stern storage module
  • 1 chaise lounge
  • Storage under all lounges

  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options

  • Onboard battery chargers and boxes
  • Stern boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting bracket
  • Battery box

  • Overall length : 5.4 m (17’-7”)
  • Deck length : 4.9 m (16'-1")
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.0 m (16’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 619 kg (1365 lb)

  • Maximum HP capacity : 48V (approx. 25 HP)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5

  • Maximum HP capacity : 48V / Cruise 12.0R (approx. 25 HP)
  • Maximum weight capacity : 744 kg (1640 lb)
  • Maximum weight person capacity : 462 kg (1018 lb)
  • Maximum person capacity : 7

  • Graphic package: Graphic set including a metallic gray stripe all around
  • Black Edition including Black painted railing, darker uphosltery, graphic design Blue electric, deluxe captain's chair and Princecraft® 3D black chrome decals

  • Concert Package including Jensen 160-watts radio system with 2 speakers, horn, LED docking lights, in-dash USB plug and smoked windscreen
  • Steering system including trim system, tilt steering wheel and driver slider seat (not available for Cruise 12.0RL)

  • Select beige/grey vinyl floor covering (Teak Supreme Solid)…UE
  • Select beige/grey vinyl with Black lines floor covering (Teak Supreme 2)…UE

  • 2 x 48V Mercury® Avator batteries with charger (included with 20E and 35E Mercury® Avator)
  • 4 x 48V Mercury® Avator batteries with charger (included with 20E and 35E Mercury® Avator)
  • Tilt steering mechanism and slider for driver seat for Torqeedo Cruise 12.0 RL only…upgrade exchange
  • 1 Torqeedo battery 24V Power 24-3500 with Torqeedo FAST charger (5h required for 0 - 100%)
  • 2 Torqeedo batteries 24V Power 24-3500 with 2 Torqeedo FAST chargers (5h required for 0 - 100%) and 1 additional in-floor battery storage
  • 1 Torqeedo battery 48V Power 48-5000 with Torqeedo FAST charger (5h required for 0 - 100%) (for Cruise 6.0 RL only)…UE
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo FAST chargers (5h required for 0 - 100%) and 1 additional in-floor battery storage (for Cruise 6.0 RL only)…UE
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo intelligent chargers (9h required for 0 - 100%) and 1 additional in-floor battery storage (Mandatory/Included in the package price with the Cruise 12.0 RL)
  • 1 Torqeedo battery 24V Power 24-3500 with Torqeedo intelligent charger (14h required for 0 - 100%)
  • 2 Torqeedo batteries 24V Power 24-3500 with 2 Torqeedo intelligent chargers (14h required for 0 - 100%) and 1 additional in-floor battery storage
  • 1 Torqeedo battery 48V Power 48-5000 with Torqeedo intelligent charger (9h required for 0 - 100%) (Mandatory/Included in the package price with the Cruise 6.0 RL)
  • 2 Torqeedo batteries 48V Power 48-5000 with 2 Torqeedo intelligent chargers (9h required for 0 - 100%) and 1 additional in-floor battery storage (for Cruise 6.0 RL only)…UE

  • Bow beige pedestal mount removable table with cup holders
  • Removable privacy enclosure installed in the bimini top
  • Captain's chair with swivel…UE
  • 2 pontoon rail boat fender hangers

  • Stern storage conversion kit into an aerated livewell and support for 3 rod holders
  • In-floor storage (can be convert into a battery storage)

  • Full camper enclosure including stern bimini canvas (black)
  • Double bimini top including stern bimini canvas (black)
  • Trailer cover (black)
  • Mooring cover (black)

  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
