Jazz 19-4S

Jazz 19-4S 2024

  • 6.0 m (19’-7”)
  • 741 kg (1634 lb)
  • 45 kW (60 HP)
  • 6 persons
Jazz 19-4S 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

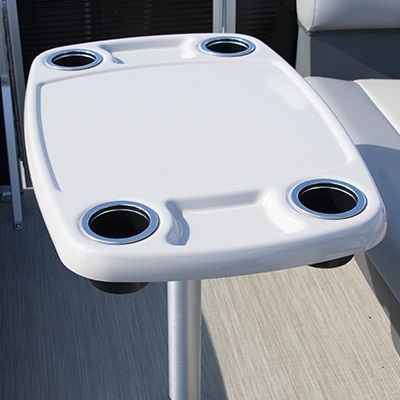

  • Optional Bow beige pedestal mount removable table
    Optional Bow beige pedestal mount removable table

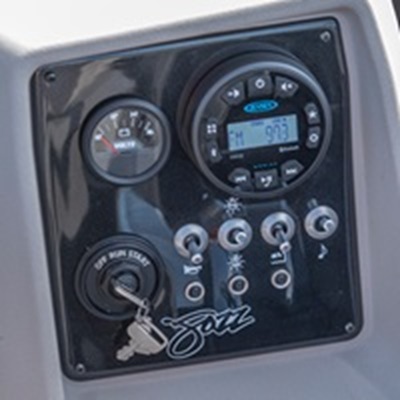

  • Optional Concert package including Jensen Stereo, horn, docking lights, and in-dash USB controls
    Optional Concert package including Jensen Stereo, horn, docking lights, and in-dash USB controls

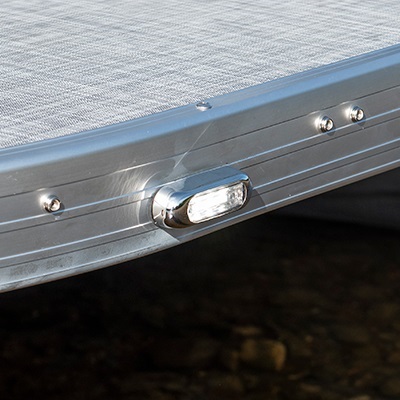

  • Docking lights
    Docking lights

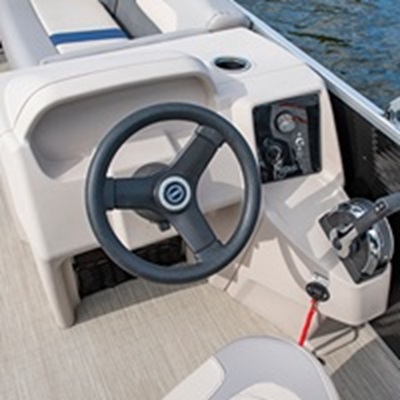

  • Rotomolded console
    Rotomolded console

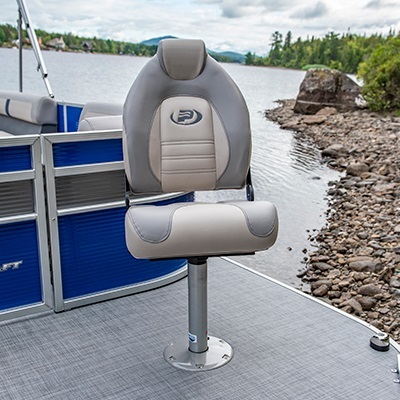

  • Swivel folding fishing seat
    Swivel folding fishing seat

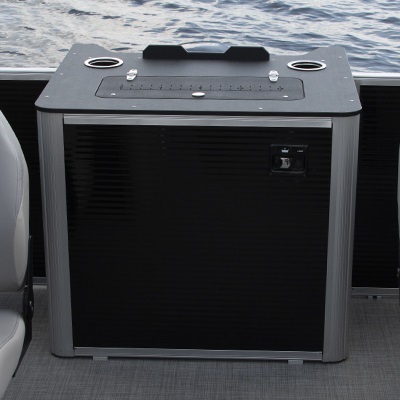

  • Fishing station including an electric-filled aerated stern livewell, fish ruler, and cup-holders
    Fishing station including an electric-filled aerated stern livewell, fish ruler, and cup-holders

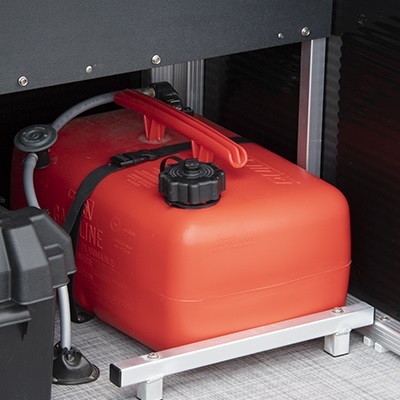

  • Portable gas tank and battery storage under the stern fishing station
    Portable gas tank and battery storage under the stern fishing station

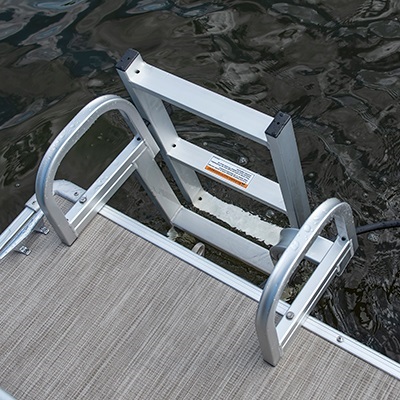

  • Stern boarding ladder
    Stern boarding ladder

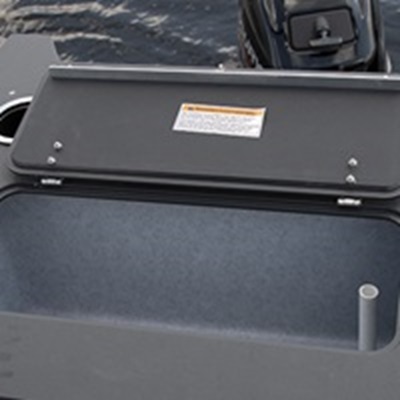

  • Livewell filling system including a water pump
    Livewell filling system including a water pump

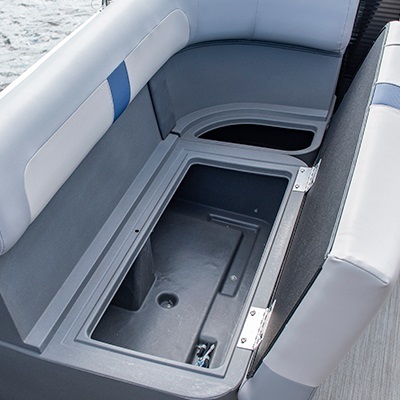

  • Storage under all lounges
    Storage under all lounges

Features and options

  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats

  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switch
  • Push on/off console courtesy light

  • Voltmeter

  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • 4 swivel folding seats
  • Folding swivel driver seat
  • 1 chaise lounge
  • Storage under all lounges

  • Fishing station including 26" long built-in electric-filled aerated stern livewell (39 L / 10 U.S. gal.), fish ruler and cup-holders

  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options

  • Stern boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting bracket
  • Battery box

  • Overall length : 6.0 m (19’-7”)
  • Deck length : 5.5 m (18’-1”)
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.6 m (18’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 660 kg (1456 lb)

  • Maximum HP capacity : 45 kW (60 HP)
  • Maximum weight capacity : 741 kg (1634 lb)
  • Maximum weight person capacity : 450 kg (992 lb)
  • Maximum person capacity : 6

  • Maximum HP capacity : 45 kW (60 HP)
  • Maximum weight capacity : 741 kg (1634 lb)
  • Maximum weight person capacity : 533 kg (1175 lb)
  • Maximum person capacity : 8

  • Type : Portable

  • Graphic package: Graphic set including a metallic gray stripe all around

  • Concert Package including Jensen 160-watts radio system with 2 speakers, speedometer, tachometer, horn, LED docking lights, in-dash USB plug and smoked windscreen (for 9.9 to 25 HP engines)
  • Concert Package including Jensen 160-watts radio system with 2 speakers, speedometer, tachometer, horn, LED docking lights, in-dash USB plug and smoked windscreen (for 30 HP & up engines)

  • Select beige/grey vinyl floor covering (Teak Supreme Solid)…UE
  • Select beige/grey vinyl with Black lines floor covering (Teak Supreme 2)…UE

  • Tilt steering mechanism and slider for driver seat…UE
  • Portable gas tank (45 L/ 12 U.S. gal.)

  • Bow beige pedestal mount removable table with cup holders
  • 2 captain's chairs with swivel and slider for captain passenger chair…UE
  • Removable privacy enclosure installed in the bimini top
  • 2 pontoon rail boat fender hangers

  • Downrigger support (1 support only)

  • Full camper enclosure including stern bimini canvas (black)
  • Double bimini top including stern bimini canvas (black)
  • Trailer cover (black)
  • Mooring cover (black)

  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
