Quorum® 23 RL

Quorum® 23 RL 2024

  • 7.2 m (23’-9”)
  • 968 kg (2134 lb.)
  • 112 kW (150 HP)
  • 11 persons
Quorum® 23 RL 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

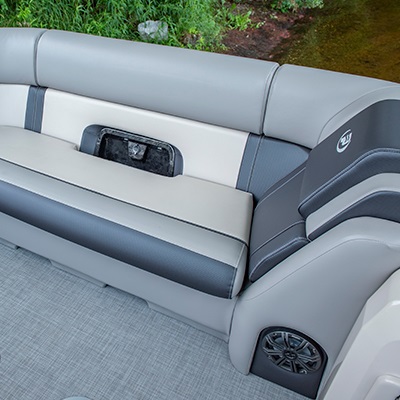

  • Bow lounger
    Bow lounger
  • Driver helm
    Driver helm
  • Driver helm storage
    Driver helm storage
  • Cup holders and USB plugs
    Cup holders and USB plugs
  • LED docking lights
    LED docking lights
  • Standard gauges including a GPS speedometer
    Standard gauges including a GPS speedometer

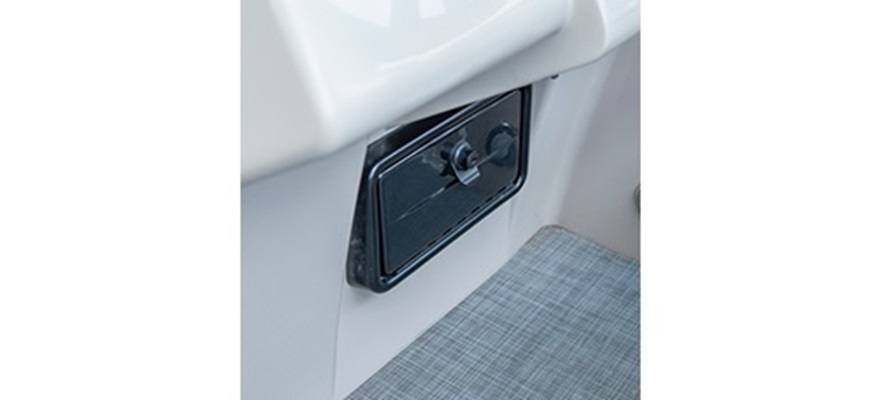

  • Glovebox
    Glovebox

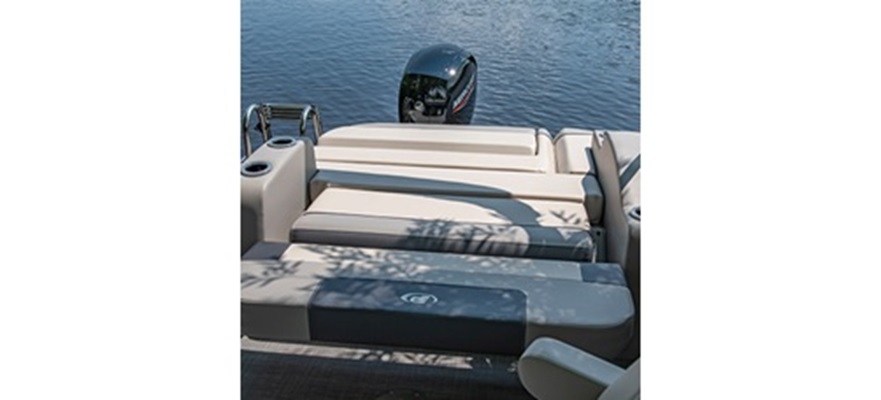

  • RL area, bed configuration
    RL area, bed configuration

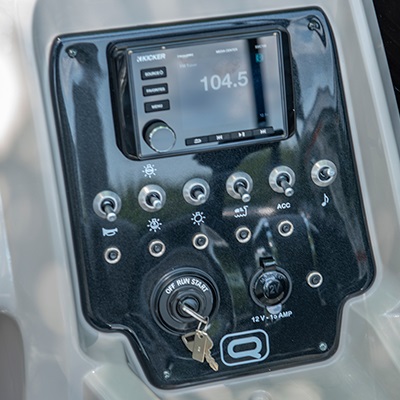

  • Molded switch Panel
    Molded switch Panel
  • Telescopic stainless steel ladder
    Telescopic stainless steel ladder

Features and options

  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (25")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (24")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats
  • Permanent gas tank of 110 L / 29 U.S. gal.

  • Fiberglass helm console
  • Molded dash panel with black inserts and lighted switches
  • Sport tilt steering mechanism
  • AM/FM/Bluetooth KMC45 Kicker Stereo
  • 4 waterproof speakers
  • Electric horn
  • 12V outlet
  • Push on/off console courtesy light
  • LED lighting under driver console
  • Quick release smoked windscreen

  • Tachometer, voltmeter, speedometer, trim and fuel gauges

  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • Passenger captain seat on slide and swivel
  • Loungers cup holders with USB port
  • Captain's chair on slide and swivel
  • RL design including multi-positions seat module, sundeck, large snack table, and storage under all seats
  • Rear padded sundeck
  • 2 chaise lounges
  • Storage in chaises lounges' reclined section
  • 1 storage pouch
  • Storage under all lounges
  • 4 snack table bases

  • High-end black bimini top with black finish structure
  • Quick release bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options

  • Stern telescopic stainless steel boarding ladder
  • Cup holders
  • Bow black chrome corner light housings
  • Navigation lights
  • Black chrome finish 3D logo
  • Transducer mounting brackets
  • Standard stainless steel propeller (on 175 HP engines and up)
  • Battery box

  • Overall length : 7.2 m (23’-9”)
  • Deck length : 6.9 m (22'-8")
  • Beam : 2.6 m (8'-5")
  • Pontoon length : 6.8 m (22'-4")
  • Pontoon diameter : 0.64 m (25”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 947 kg (2088 lb)

  • Maximum HP capacity : 112 kW (150 HP)
  • Maximum weight capacity : 968 kg (2134 lb)
  • Maximum weight person capacity : 676 kg (1490 lb)
  • Maximum person capacity : 11

  • Approximate weight : 1097 kg (2418 lb)
  • Maximum HP capacity : 130.5 kW (175 HP)
  • Maximum weight capacity : 1071 kg (2362 lb)
  • Maximum weight person capacity : 771 kg (1700 lb)
  • Maximum person capacity : 12

  • Approximate weight : 1231 kg (2715 lb)
  • Maximum HP capacity : 186 kW (250 HP)
  • Maximum weight capacity : 1111 kg (2449 lb)
  • Maximum weight person capacity : 742 kg (1635 lb)
  • Maximum person capacity : 12

  • Maximum HP capacity : 112 kW (150 HP)
  • Maximum weight capacity : 968 kg (2134 lb)
  • Maximum weight person capacity : 676 kg (1490 lb)
  • Maximum person capacity : 11

  • Approximate weight : 1097 kg (2418 lb)
  • Maximum HP capacity : 130.5 kW (175 HP)
  • Maximum weight capacity : 1071 kg (2362 lb)
  • Maximum weight person capacity : 771 kg (1700 lb)
  • Maximum person capacity : 12

  • Poids approximatif : 1231 kg (2715 lb)
  • Maximum HP capacity : 186 kW (250 HP)
  • Maximum weight capacity : 1111 kg (2449 lb)
  • Maximum weight person capacity : 742 kg (1635 lb)
  • Maximum person capacity : 12

  • Built-in : ≤ 110 L (29 U.S. gal.)

  • Dinette Package : Flip flop seat with integrated cooler…UE
  • Elegance Edition (including Metallic Grey accent): Elegance Edition logo on both sides, Elegance graphic package with Metallic Grey color accent, large black pearl woodgrain table exchange, LED lighting on logs, speakers and fixed cup holders
  • Elegance Edition (excluding Metallic Grey accent): Elegance Edition logo on both sides, large black pearl woodgrain table exchange, LED lighting on logs, speakers and fixed cup holders

  • Convenience package including docking lights, reclining captain's chair with height adjustment (and if applicable, co-pilot recliner seat) and wireless smartphone charger integrated to the console

  • Select beige/grey vinyl floor covering (Teak Supreme Solid)…UE
  • Select beige/grey vinyl with Black lines floor covering (Teak Supreme 2)…UE

  • Additional battery bank system including charger (ProSport 6) and battery switch
  • SeaStar® hydraulic steering with tilt wheel...UE (included with 150 HP and up)
  • Mercury® power steering with tilt wheel (for 175, 200 & 225 HP V6 only)…UE

  • Pop-up privacy enclosure
  • Head Package including holding tank with a pump out system (9.8 l/ 2.6 U.S. gal.) and a pop-up privacy enclosure
  • Safety railing on the rear seat
  • 2 pontoon rail boat fender hangers
  • Wakeboard tower including bimini top (black) - Manual system - Performance configuration required
  • Stainless steel waterski tow bar

  • Active trim: automatic trim system
  • 200-watt AM/FM/Bluetooth Kicker® KMC 100 Stereo in console with 6 speakers…UE
  • Multifunction Simrad Go7 screen replacing the standard gauges…UE
  • Underwater lighting (2 lights)
  • Sonar Humminbird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar Lowrance Hook2 4x
  • Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)

  • Full camper enclosure excluding stern bimini canvas (black)
  • Full camper enclosure excluding stern bimini canvas (black) - Performance Configuration
  • Full camper enclosure available with wakeboard tower package and excluding stern bimini canvas (black)
  • Double bimini top excluding stern bimini canvas, including rear extension and black anodized frame (black)
  • Double bimini top available with wakeboard tower package, including rear extension and black anodized frame (black)
  • Trailer cover (black) - Performance Configuration
  • Trailer cover available with wakeboard tower package (black)
  • Mooring cover (black)
  • Mooring cover (black) - Performance Configuration
  • Mooring cover available with wakeboard tower package (black)
  • Trailer cover (black)

  • Stainless steel propeller model Enertia 14,7 x 16 (for Speed & Sport configuration with 150 HP only)…UE
  • Stainless steel propeller model Enertia 15,3 x 14 (for Performance configuration and 150 HP)…UE
  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Conversion kit for 3-log models
  • Galvanized spare wheel 5.30 x 12" C with 5 lugs and bracket
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
