Hudson® 166 WS

Hudson® 166 WS 2024

  • 5.0 m (16’-6”)
  • 600 kg (1323 lb.)
  • 86 kW (115 HP)
  • 5 persons
Hudson® 166 WS 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

  • Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console
    Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console
  • 2 folding seats
    2 folding seats

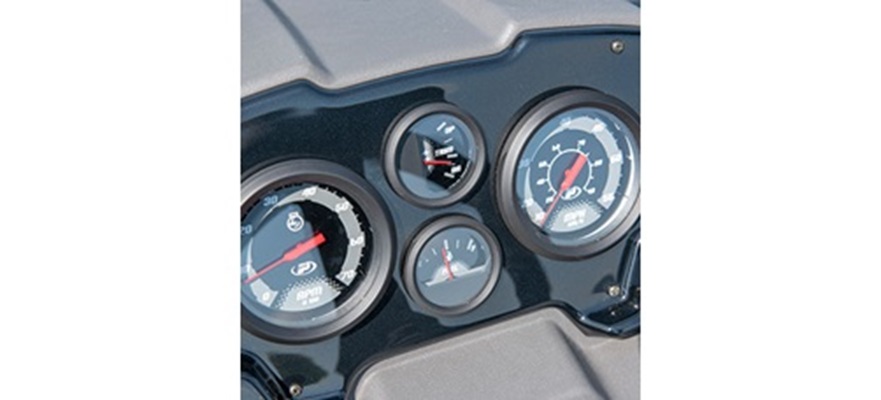

  • Instrumentation: tachometer, speed, trim, and fuel gauges
    Instrumentation: tachometer, speed, trim, and fuel gauges

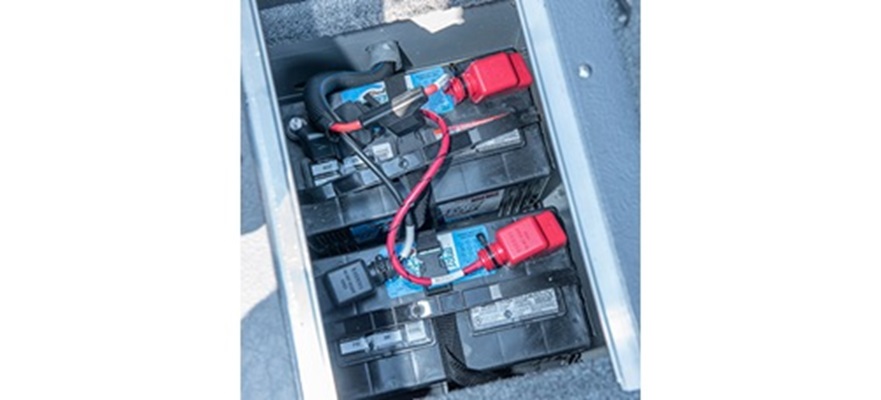

  • Battery storage (batteries not included)
    Battery storage (batteries not included)

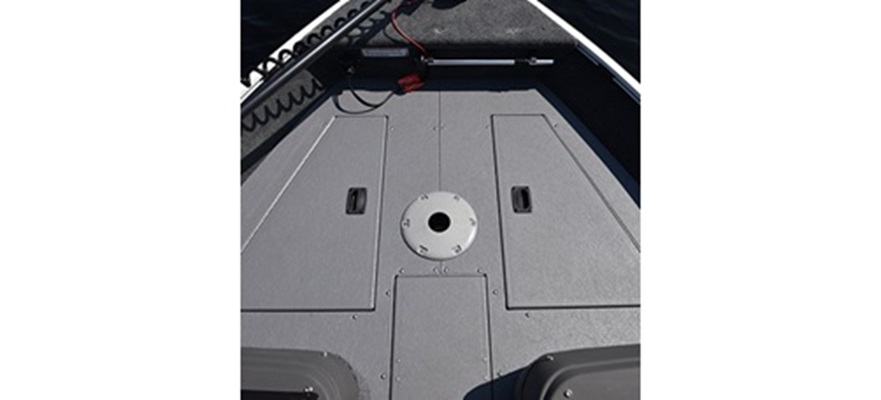

  • Bow raised casting platform
    Bow raised casting platform

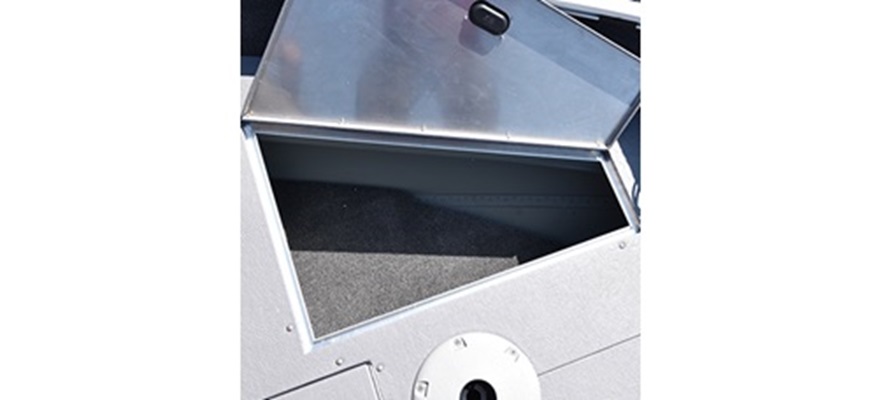

  • Storage under bow raised fishing platform
    Storage under bow raised fishing platform

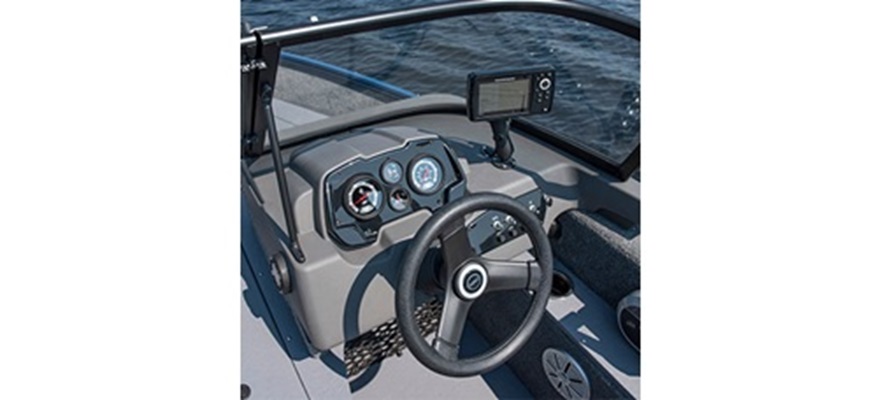

  • Driver console (optional sonar)
    Driver console (optional sonar)

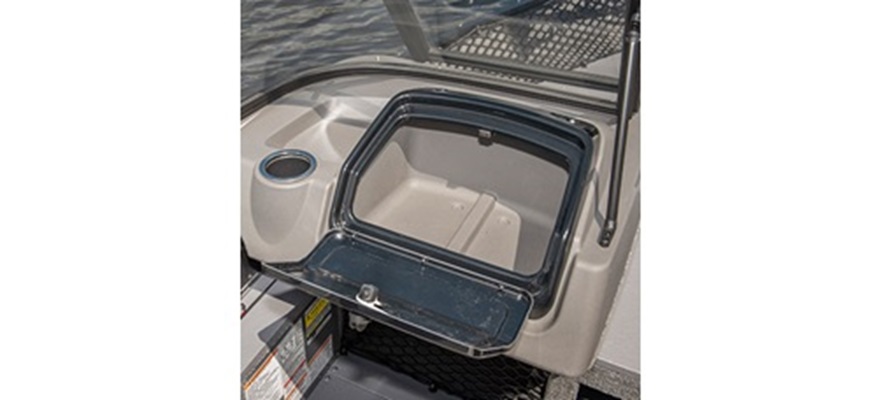

  • Passenger console with glove box
    Passenger console with glove box
  • Large lockable rod organizer with tubes for 10 rods in the bow casting platform
    Large lockable rod organizer with tubes for 10 rods in the bow casting platform

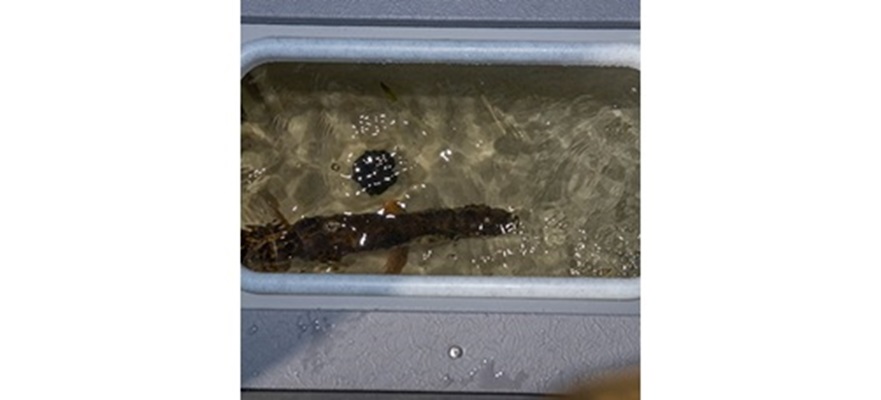

  • Stern electric-filled aerated livewell (61 L/16 U.S.gal.)
    Stern electric-filled aerated livewell (61 L/16 U.S.gal.)

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices with a glossy finish including decal package
  • Reverse chine hull design
  • Aluminum clad transom
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Rigging tube under flooring (from console to bow)
  • Rigging tube under flooring (from stern to console)
  • Stainless steel bow and stern eyes
  • 4 nylon cleats
  • BOW RAISED CASTING PLATFORM
  • Storage under casting platform
  • Deep cycle battery storage compartment
  • Seat mount floor base
  • Storage compartment
  • Large lockable rod organizer with tubes for 6 rods
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base

  • 7-foot rod storage without support
  • 12V or 24V bow trolling motor plug and receptacle with wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • Marine grade carpet front deck
  • BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • STERN SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (34", 61 L/16 U.S. gal.)
  • Overflow
  • Anti-spill cover
  • Protection filter on the filling pump

  • 6 floor seat bases
  • 2 folding seats with no-pinch hinges

  • Twin consoles with steering system
  • Glove box
  • Black anodized walk-thru tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack steering system
  • Storage under consoles

  • Tachometer, speedometer, trim, and fuel gauges

  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • Electric bilge pump
  • Navigation lights
  • Factory-installed snap fasteners for optional canvas camper enclosures and mooring top
  • Interior light(s)
  • 2 cup holders
  • 3 battery holders
  • Emergency reboarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl

  • Standard galvanized bunk style trailer
  • Single axle with swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 084 kg (2 390 lb) carrying capacity
  • Radial tire size : ST175/80R13 C
  • Weight: 150 kg (330 lb)

  • Center line : 5.0 m (16’-6”)
  • Beam : 2.2 m (88”)
  • Chine width : 1.8 m (71”)
  • Maximum depth : 0.8 m (33”)
  • Approximate draft : 0.7 m (28”)
  • Transom height : 0.5 m (20”)
  • Approximate weight : 474 kg (1044 lb)
  • Dead rise (degres) : 13

  • Maximum HP Capacity : 86 kW (115 HP)
  • Maximum weight capacity : 600 kg (1323 lb)
  • Maximum weight person capacity : 300 kg (661 lb)
  • Maximum person capacity : 4

  • Max. HP cap. : 86 kW (115 HP)
  • Max. weight cap. : 600 kg (1323 lb)
  • Maximum weight person capacity : 318 kg (700 lb)
  • Maximum person capacity : 5

  • Bottom : 2.2 mm (.087")
  • Side : 1.8 mm (.072")
  • Gas tank * : ≤ 72 L (19 U.S. gal.)

  • Built-in : ≤ 72 L (19 U.S. gal.)

  • Team Princecraft® special decal package…UE
  • Deluxe Princecraft® decal package…UE

  • Fishing Package: Tournament Fishing Team graphics, fish ruler, deluxe seat exchange, flat seat base(s) on fishing platform(s), quick rod storage, nets addition under console(s) and on bow platform
  • Deluxe Package including telescopic stern boarding ladder, 160-watt AM/FM/Bluetooth Jensen Stereo with 2 speakers and battery switch

  • MotorGuide® Xi3-55FW wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 54", 70 lb. peak thrust)
  • Minn Kota® 55 POWERDRIVE FP trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota® 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
  • Minn Kota® 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with iPilot and bracket
  • Tilt steering with slider for captain's chair…UE
  • SeaStar® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
  • Trolling motor onboard charger for 1 - 12V battery (ProSport 6)
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)

  • Deluxe folding seats…UE (replacing standard seats)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • Seat Package: folding seat, post (11") and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (11") and seat mount with auto-lock handle
  • RSP Combo: Removable aft flip seats and 2 cup holders

  • Downrigger supports (black)
  • Downrigger supports (grey)
  • Downrigger supports (red)
  • Downrigger supports (blue)
  • PrinceTrak mounting bracket
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)

  • Sonar Humminbird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)
  • Active trim: automatic trim system
  • Sonar Lowrance Hook2 4x with RAM mount

  • Complete conversion from sun top to full top (black)
  • Sun top with bimini canvas connected to windshield including the bimini structure (black)
  • Trailer cover (black)

  • Livewell minnow bucket

  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
