Sport 175 2024

5.3 m (17’-5”)
713 kg (1572 lb)
112 kW (150 HP)
7 persons

Our advantages

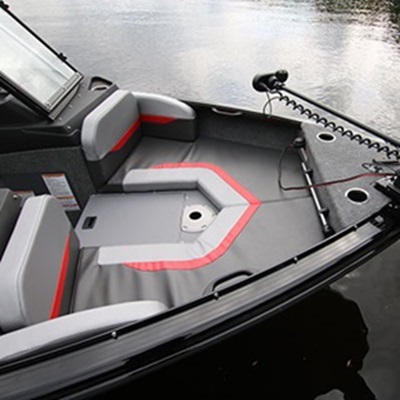

Optional bow rider seat cushions

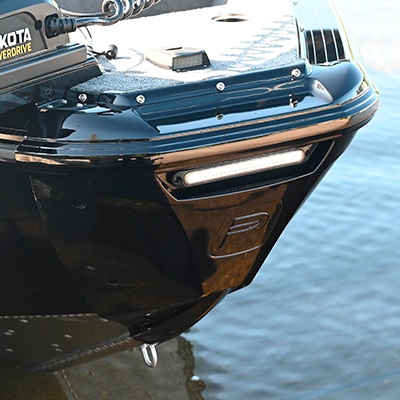

LED docking light
Multifunction Simrad Go7 screen

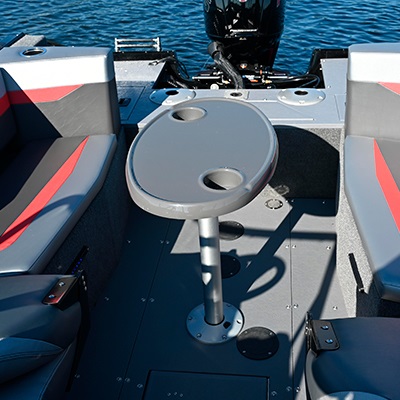

Removable oval table with post

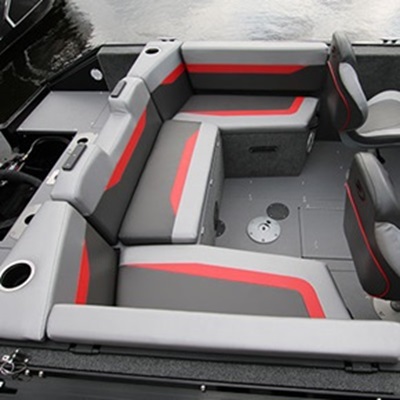

Optional stern seating area with livewell or cooler underneath

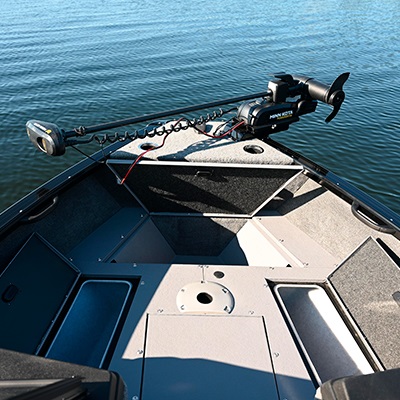

Bos raised casting platform

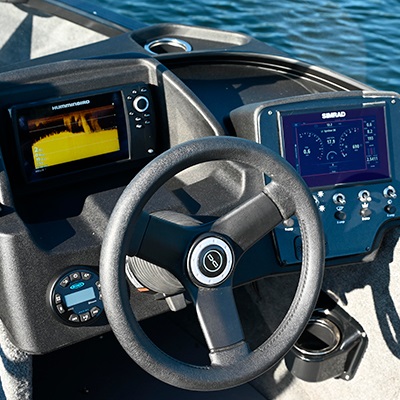

Driver console (shown with the optional multifunction Helix 7 and Simrad Go 7 screens)

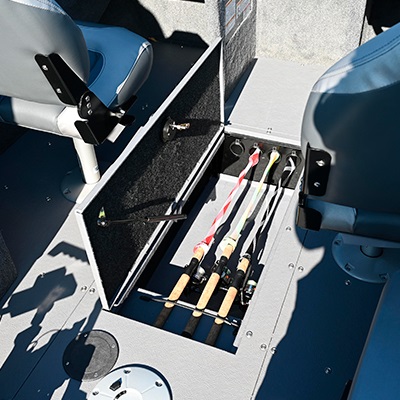

In-floor lockable rod organizer for 4 rods

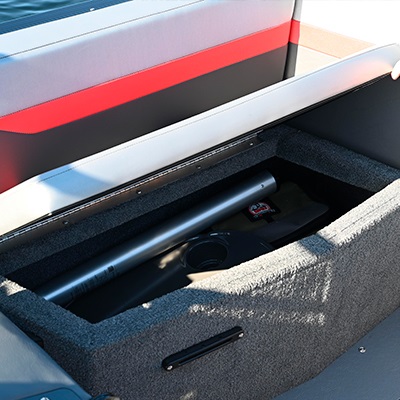

Storage under both rear side benches

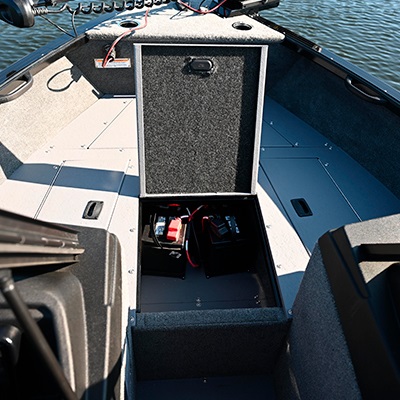

Deep cycle battery storage compartment

View it in action ^*

Walkaround video ^*

Features and options

5052-H36 marine grade aluminum alloy
NMMA & Transport Canada certified
Exterior urethane paint choices with a glossy finish including decal package
Reverse chine hull design
Deep self-draining splashwell
Twin plating from bow to mid-ship
Twin plating at the chine
Rigging tube under flooring (from console to bow)
Rigging tube under flooring (from stern to console)
Stainless steel bow and stern eyes
4 chromed cleats
BOW RAISED CASTING PLATFORM
Anchor storage compartment
Deep cycle battery storage compartment
Ice chest
Electric-filled aerated livewell
Seat mount floor base
Storage compartment
AFT RAISED CASTING PLATFORM
Battery storage compartment
Seat mount floor base
Splashwell extension
Storage compartment

7-foot rod storage without support
In-floor lockable rod organizer for 4 rods
12V or 24V bow trolling motor plug and receptacle with wiring harness
Trolling motor plug with 60 AMP protection
Bow mounting trolling motor pad
Marine grade carpet front deck
BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
Bow livewell (30", 64 L/17 U.S. gal.)
Overflow
Anti-spill cover
Insulated lid
Protection filter on the filling pump

4 floor seat bases
2 folding seats with no-pinch hinges
Stern loungers with storage

Twin consoles with steering system
Glove box
Black anodized walk-thru tempered glass windshield with door
Deluxe dash panel with switches and indicator lights
No-FeedBack dual cable steering system
Storage under consoles
Electric horn and 12V outlet

Tachometer, speedometer, trim, and fuel gauges

All the flat surfaces are covered with anti-skid marine grade vinyl
Electric bilge pump
Navigation lights
Factory-installed snap fasteners for optional canvas camper enclosures and mooring top
Interior light(s)
3 handles
6 cup holders
3 battery holders
Stern telescopic boarding ladder
Transducer(s) mounting plate
Pressure-treated wood floor covered with marine grade vinyl
2 side storage compartments

Standard galvanized bunk style trailer
Single axle with disc brakes and swing tongue
Carpeted fixed bunks and load guides
Built-in steps and composite fenders
Sealed hubs and swivel tongue jack
2" ball coupler
LED lighting
Factory balanced steel wheel
1 114 kg (2 449 lb) carrying capacity
Radial tire size : ST205/75R14 C
Weight: 228 kg (503 lb)

Center line : 5.3 m (17’-5”)
Beam : 2.3 m (91”)
Chine width : 1.9 m (75")
Maximum depth : 1.0 m (39")
Approximate draft : 0.8 m (30")
Transom height : 0.6 m (25")
Approximate weight : 699 kg (1542 lb)
Dead rise (degres) : 15

Maximum HP Capacity : 112 kW (150 HP)
Maximum weight capacity : 713 kg (1572 lb)
Maximum weight person capacity : 413 kg (910 lb)
Maximum person capacity : 6

Max. HP cap. : 112 kW (150 HP)
Max. weight cap. : 713 kg (1572 lb)
Maximum weight person capacity : 413 kg (910 lb)
Maximum person capacity : 7

Bottom : 2.5 mm (.100")
Side : 1.8 mm (.072")
Gas tank * : ≤ 91 L (24 U.S. gal.)

Built-in : ≤ 91 L (24 U.S. gal.)

Domed decal package (black chrome)…UE

Techno Package including 160 W Jensen radio, LED lights in the boat, LED docking light and battery switch

Minn Kota^® 55 POWERDRIVE FP trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
Minn Kota^® 55 PD V2 trolling motor (12 volts, 54", 55 lb. peak thrust) with iPilot and bracket
Minn Kota^® 70 PD V2 trolling motor (24 volts, 54", 70 lb. peak thrust) with iPilot and bracket
Trolling motor onboard charger for 1 - 12V battery (ProSport 6)
Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)
MotorGuide^® Xi3-55FW wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
MotorGuide^® Xi3-70FW wireless trolling motor (24 volts, 54", 70 lb. peak thrust)
Tilt steering with slider for captain's chair…UE
SeaStar^® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)

Removable oval table with post
Bow rider seat cushions
Stern seat cushion (Stern seating module required)
Deluxe folding seats…UE (replacing standard seats)
Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
Seat Package: folding seat, post (11") and seat mount with auto-lock handle
Seat Package (Deluxe): folding seat, post (11") and seat mount with auto-lock handle
Removable ski pylon

Stern seating area with a cooler underneath (can be install by the dealer but no livewell system)
Stern seating area with a livewell underneath (must ordered and installed at the factory)
Downrigger supports (black)

Sonar/ GPS Humminbird Helix 7 (built-in) (the bathymetric depth maps are not included)
Multifunction Simrad Go7 screen replacing the standard gauges…UE
Sonar Humminbird PiranhaMAX 4
Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)
Active trim: automatic trim system
Sonar Lowrance Hook2 4x with RAM mount

Trailer cover (black)
Complete conversion from sun top to full top (black)
Sun top with bimini canvas connected to windshield including the bimini structure (black)

Stainless steel propeller model TempestPlus 14 5/8 x 19 for 150 HP & 150 HP PRO-XS…UE

Deluxe transom tie downs…/pair
Transom saver motor support bar
ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
14" aluminum mag wheels…UE on galvanized model…(2)
14" aluminum mag spare wheel and bracket (excluding nuts)
