Xpedition® 200

Xpedition® 200 2024

  • 6.1 m (20’-0”)
  • 841 kg (1854 lb)
  • 186 kw (250 HP)
  • 6 persons
Xpedition® 200 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

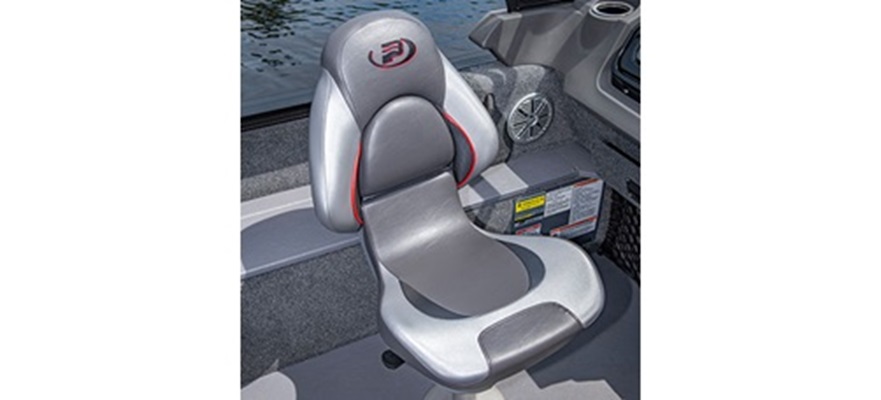

  • Optional deluxe folding seats
    Optional deluxe folding seats

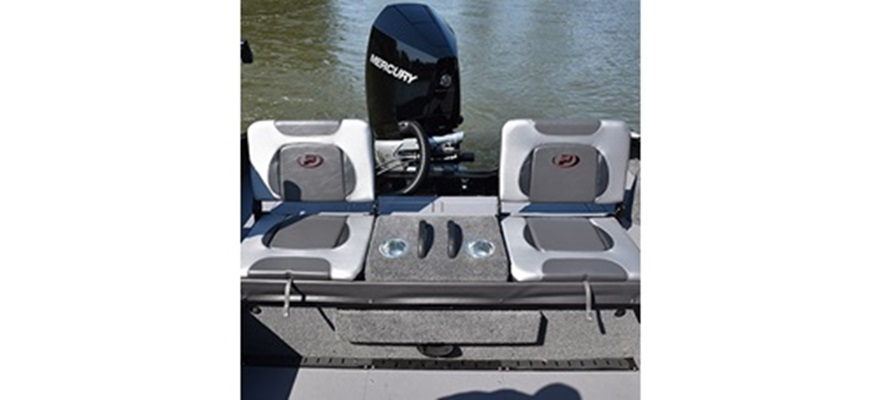

  • Optional RSP Combo: Removable aft flip seats and 2 cup holders
    Optional RSP Combo: Removable aft flip seats and 2 cup holders
  • Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console
    Optional 160-watt AM/FM/Bluetooth Jensen Stereo with integrated auxiliary input (1/8'') in console

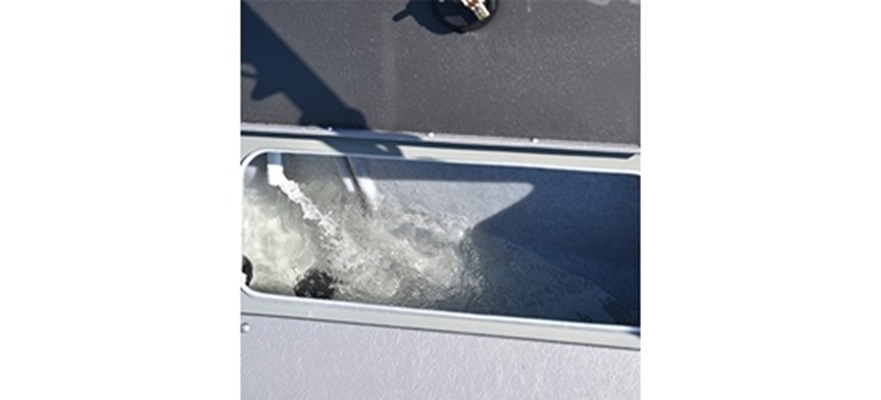

  • Electric-filled aerated bow livewell
    Electric-filled aerated bow livewell

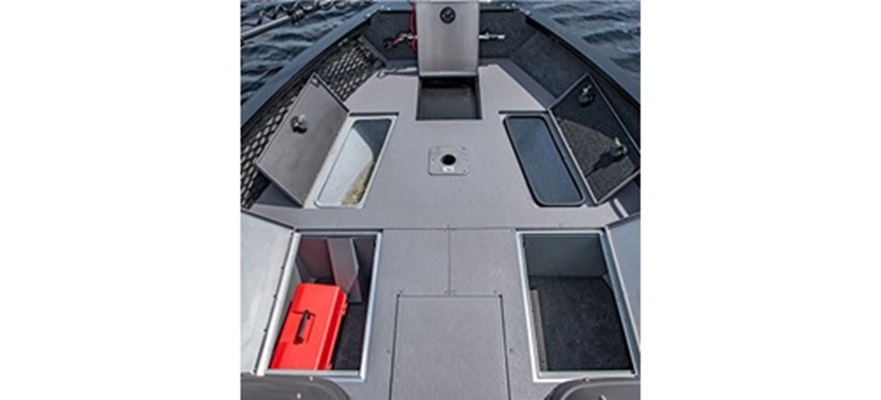

  • Storage under the bow casting platform
    Storage under the bow casting platform

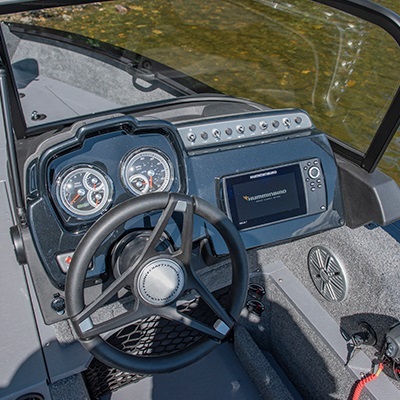

  • Driver console with optional integrated sonar shown
    Driver console with optional integrated sonar shown

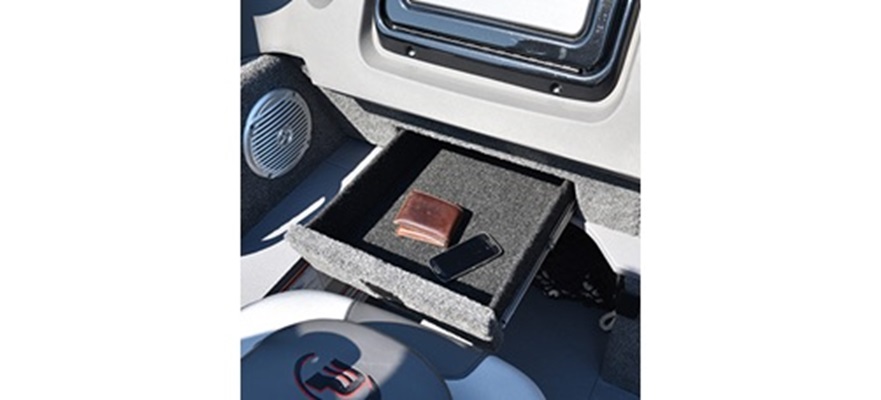

  • Drawer(s) under console(s)
    Drawer(s) under console(s)

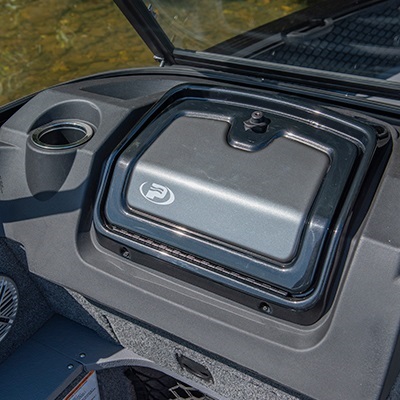

  • Passenger console with glove box
    Passenger console with glove box

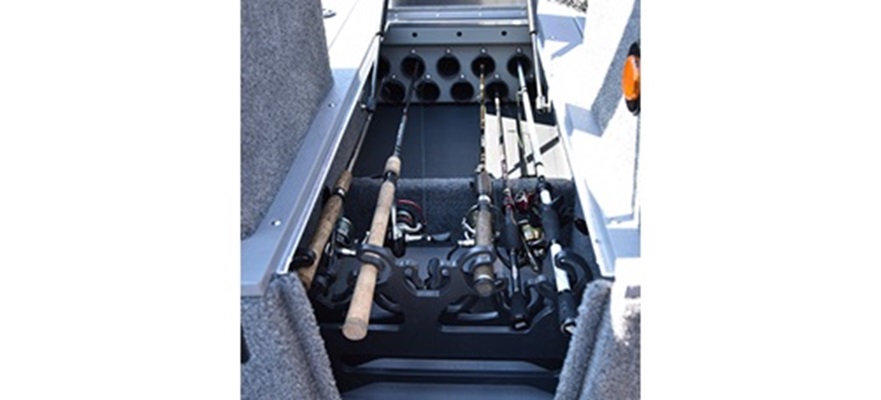

  • Large lockable rod organizer with tubes for 10 rods
    Large lockable rod organizer with tubes for 10 rods
  • Stern electric-filled aerated livewell (77 L/20 U.S. gal.)
    Stern electric-filled aerated livewell (77 L/20 U.S. gal.)

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint, with black glossy finish including decal package
  • Reverse chine hull design
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from console to bow)
  • Rigging tube under flooring (from stern to console)
  • Stainless steel bow and stern eyes
  • 4 stainless steel folding cleats
  • BOW RAISED CASTING PLATFORM
  • Compression latches on all storage
  • Extensible cargo net
  • Deep cycle battery storage compartment
  • Lockable tight storage
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Recessed pan for trolling motor pedal
  • Grids allowing air flow in the compartments
  • ACS system: Air intake allowing air flow into large storage compartments and rod organizer
  • Storage compartment
  • Large lockable rod organizer with tubes for 10 rods
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Splashwell extension
  • Storage compartment

  • Rod holders on passenger side
  • Rod straps
  • 9-foot rod storage with tubes and support for 4 rods (left side)
  • 12V, 24V or 36V bow trolling motor plug and receptacle with wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • Tournament Fishing Team graphics
  • Fish ruler
  • Flat seat base(s) on fishing platform(s)
  • Quick rod storage
  • Nets addition under console(s) and on bow platform
  • Aluminum bow deck for trolling motor
  • BOW PROFLO PLUS ELECTRIC-FILLED AERATED LIVEWELL
  • Bow livewell (30", 64 L/17 U.S. gal.)
  • Intermittent recirculation
  • Overflow
  • Remote control thru-hull drain
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump
  • STERN PROFLO PLUS ELECTRIC-FILLED AERATED LIVEWELL
  • Stern livewell (44", 77 L/20 U.S. gal.)
  • Intermittent recirculation
  • Overflow
  • Remote control thru-hull drain
  • Light
  • Anti-spill cover
  • Insulated lid
  • Isolated bow and stern livewell
  • Protection filter on the filling pump

  • 4 floor seat bases
  • 2 folding seats with no-pinch hinges

  • Twin consoles with steering system
  • Console(s) with steering system
  • Glove box
  • Drawer(s) under console(s)
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack dual cable steering system
  • Storage under driver console with extensible cargo net
  • Electric horn and 12V outlet

  • Tachometer, speedometer, voltmeter, trim, and fuel gauges

  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • PrinceTrak System: extrusion allowing onboard tool fixing
  • High capacity electric bilge pump
  • Navigation lights
  • Factory-installed snap fasteners for optional canvas camper enclosures and mooring top
  • Interior light(s)
  • 3 handles
  • 2 cup holders
  • 4 battery holders
  • Stern telescopic boarding ladder
  • 2 transducer mounting plates
  • Pressure-treated wood floor covered with marine grade vinyl
  • Stainless steel propeller standard on 175 HP and up
  • Cockpit quick drain to bilge

  • Standard galvanized bunk style trailer
  • Tandem axle with disc brakes and swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 932 kg (4 260 lb) carrying capacity
  • Radial tire size : ST175/80R13 C
  • Weight: 535 kg (1 180 lb)

  • Center line : 6.1 m (20’-0”)
  • Beam : 2.3 m (92”)
  • Chine width : 2.0 m (78")
  • Maximum depth : 0.9 m (37")
  • Approximate draft : 0.8 m (33")
  • Transom height : 0.6 m (25")
  • Approximate weight : 664 kg (1463 lb)
  • Dead rise (degres) : 13

  • Max. HP cap. : 186 kW (250 HP)
  • Max. weight cap. : 766 kg (1689 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5

  • Max. HP cap. : 186 kW (250 HP)
  • Max. weight cap. : 841 kg (1854 lb)
  • Maximum weight person capacity : 775 kg (1708 lb)
  • Maximum person capacity : 6

  • Bottom : 2.5 mm (.100")
  • Side : 1.8 mm (.072")
  • Gas tank * : ≤ 151 L (40 U.S. gal.)

  • Built-in : ≤ 144 L (38 U.S. gal.)

  • Team Princecraft® special decal package…UE

  • Extreme Fishing Package including ventilation system in bow storage compartments including an electric fan, deluxe folding seats and bicycle seat package

  • Minn Kota® Terrova trolling motor (36 volts, 60", 112 lb. peak thrust/DSC/FP/GPS)
  • Kicker option with SeaStar® hydraulic steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod
  • Kicker option with SeaStar® hydraulic steering Mercury® 15 PRO-KICKER with remote control and connecting rod
  • Kicker option with power steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod (for V6/V8)
  • Kicker option with power steering Mercury® 15 PRO-KICKER with remote control and connecting rod (for V6/V8)
  • Kicker option with power steering Mercury® 9.9 PRO-KICKER with remote control and connecting rod (for Verado® V8)
  • Kicker option with power steering Mercury® 15 PRO-KICKER with remote control and connecting rod (for Verado® V8)
  • Lid to close the recessed pedal space
  • SeaStar® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
  • Mercury® power steering system with tilt wheel and slider for captain's chair (for 175, 200 & 225 HP engines)…UE
  • Trolling motor onboard charger for 3 - 12V batteries (ProTournament 300)

  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • Seat Package: folding seat, post (12") and seat mount with auto-lock handle
  • Seat Package (Deluxe): folding seat, post (12") and seat mount with auto-lock handle
  • 2 cockpit rear seat bases
  • Removable ski pylon
  • RSP Combo: Removable aft flip seats and 2 cup holders

  • Downrigger supports (black)
  • Downrigger supports (matte black)
  • PrinceTrak mounting bracket
  • PrinceTrak storage system
  • PrinceTrak fish table
  • PrinceTrak rod holder (installation plate included)

  • SmartCraft gauges (tachometer, speedometer and trim)…UE
  • 160-watt AM/FM/Bluetooth Jensen Stereo
  • Sonar Lowrance® Hook2 4x with RAM mount
  • Sonar Humminbird PiranhaMAX 4
  • Sonar/ GPS Humminbird Helix 5 G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance HDS-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Lowrance Hook2-7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird Helix 7 (built-in) (the bathymetric depth maps are not included)
  • Active trim: automatic trim system

  • Sun top with bimini curtain connected to windshield including the bimini structure (black) (for SC configuration)
  • Sun top with bimini curtain connected to windshield including the bimini structure (black) (for DC configuration)
  • Sun top with bimini curtain connected to windshield including the bimini structure (black) (for WS configuraiton)
  • Trailer cover (black) (for SC Configuration)
  • Trailer cover (black) (for DC configuration)
  • Trailer cover (black) (for WS Configuration)
  • Complete conversion from sun top to full top (black) (for SC configuration)
  • Complete conversion from sun top to full top (black) (for DC configuration)
  • Complete conversion from sun top to full top (black) (for WS configuration)

  • Wash down system
  • Livewell minnow bucket
  • Stainless steel propeller model TempestPlus 14 5/8 x 19 for 150 HP & 150 HP PRO-XS…UE
  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Deluxe transom tie downs…/pair
  • Transom saver motor support bar
  • ST175/80R13 C galvanized spare wheel with 5 lugs and bracket
