Jazz 17

Jazz 17 2024

  • 5.4 m (17’-7”)
  • 640 kg (1410 lb)
  • 37 kW (50 HP)
  • 7 persons
Jazz 17 2024 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

  • Optional Concert package including Jensen Stereo, horn, docking lights and in-dash USB controls
    Optional Concert package including Jensen Stereo, horn, docking lights and in-dash USB controls

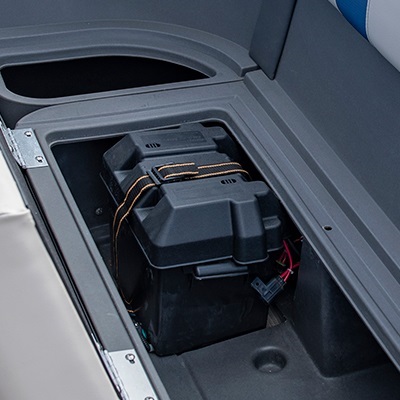

  • Battery storage
    Battery storage
  • Bow storage
    Bow storage
  • Rotomolded console
    Rotomolded console
  • Folding swivel driver seat
    Folding swivel driver seat
  • Chaise lounge
    Chaise lounge

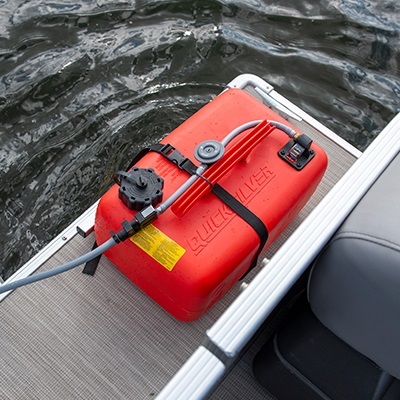

  • Portable gas tank
    Portable gas tank
  • Stern boarding ladder
    Stern boarding ladder
  • Storage under console
    Storage under console
  • Storage under all lounges
    Storage under all lounges

Features and options

  • 5052-H36 marine grade aluminum alloy
  • 2 1/2" heavy-duty extruded Z-aluminum cross channels
  • NMMA & Transport Canada certified
  • 1 1/4" anodized aluminum rails
  • Sealed pontoon bulkheads with top mounted air plug (23")
  • V-shaped aluminum engine pod
  • Select dark grey vinyl floor covering (Teak Supreme Solid Dark)
  • Extruded aluminum full-length pontoon keels
  • Extruded aluminum full-length pontoon skirting
  • Stern molded corners
  • Walk-thru rear gate with lift and lock hinges
  • Walk-thru bow gate with lift and lock hinges
  • Port side gate with lift and lock hinges (21")
  • Stern swim platform
  • Stainless steel bow eye
  • 4- 6" chromed deck cleats

  • Rotomolded helm console
  • Helm storage with net
  • Molded dash panel with black inserts and lighted switch
  • Push on/off console courtesy light

  • Voltmeter

  • Plush and heavy weight upholstery
  • Roto-Cast furniture bases and backs
  • Folding swivel driver seat
  • 1 stern storage module
  • 1 chaise lounge
  • Storage under all lounges

  • Black bimini top
  • Bimini top latches and traveling struts
  • Factory installed snap fasteners for canvas camper enclosures & mooring/trailer top options

  • Stern boarding ladder
  • Cup holders
  • Navigation lights
  • Transducer mounting bracket
  • Battery box

  • Overall length : 5.4 m (17’-7”)
  • Deck length : 4.9 m (16'-1")
  • Beam : 2.5 m (8'-1")
  • Pontoon length : 5.0 m (16’-4”)
  • Pontoon diameter : 0.58 m (23”)
  • Pontoon aluminum thickness : 2.0 mm (.080")
  • Approximate weight : 593 kg (1307 lb)

  • Maximum HP capacity : 37 kW (50 HP)
  • Maximum weight capacity : 640 kg (1410 lb)
  • Maximum weight person capacity : 375 kg ( 827 lb)
  • Maximum person capacity : 5

  • Maximum HP capacity : 37 kW (50 HP)
  • Maximum weight capacity : 640 kg (1410 lb)
  • Maximum weight person capacity : 431 kg (951) lb)
  • Maximum person capacity : 7

  • Type : Portable

  • Graphic package: Graphic set including a metallic gray stripe all around

  • Concert Package including Jensen 160-watts radio system with 2 speakers, speedometer, tachometer, horn, LED docking lights, in-dash USB plug and smoked windscreen (for 9.9 to 25 HP engines)
  • Concert Package including Jensen 160-watts radio system with 2 speakers, speedometer, tachometer, horn, LED docking lights, in-dash USB plug and smoked windscreen (for 30 HP & up engines)

  • Select beige/grey vinyl floor covering (Teak Supreme Solid)…UE
  • Select beige/grey vinyl with Black lines floor covering (Teak Supreme 2)…UE

  • Tilt steering mechanism and slider for driver seat…UE

  • Bow beige pedestal mount removable table with cup holders
  • Captain's chair with swivel…UE
  • Removable privacy enclosure installed in the bimini top
  • 2 pontoon rail boat fender hangers

  • Stern storage conversion kit into an aerated livewell and support for 3 rod holders

  • Full camper enclosure including stern bimini canvas (black)
  • Double bimini top including stern bimini canvas (black)
  • Trailer cover (black)
  • Mooring cover (black)

  • Battery switch: onboard power shut down (Forced with 200 & up)

  • Galvanized spare wheel 20.5 x 8" x 10" C and bracket
